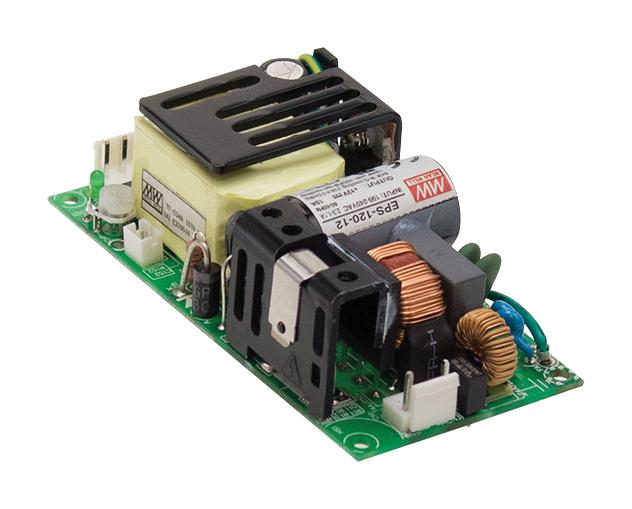

MEAN WELL EPS12012 Industrial Power Supply
EPS-120 is a 120W highly reliable power supply with a compact 4x2 inch footprint, offering high efficiency up to 91% and low no load power consumption below 0.3W. It accepts 80-264VAC input, provides various output voltages from 12V to 48V, and is suitable for industrial automation, control systems, and electronic equipment. Fully compliant with international safety standards including UL60950-1, TUV EN60950-1, and IEC60950-1, it features protections for short circuit, overload, over voltage, and over temperature, making it an ideal high-performance power source for diverse industrial applications.
MEAN WELL EPS12012 Industrial Power Supply Specifications:
- Power: 120W
- Input Voltage Range: 80~264VAC
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Output Current: 10A (12V), 8A (15V), 5A (24V), 4.2A (27V), 2.5A (48V)
- Efficiency: up to 91%
- Ripple & Noise: 120mVp-p to 200mVp-p
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Cooling: Free air convection or 10CFM forced air at 84W/120W
- Built-in 12V/0.5A fan supply
- Dimensions: 4" x 2" x 1.5" (approximately 101.6mm x 50.8mm x 38mm)
- Safety Standards: UL60950-1, TUV EN60950-1, IEC60950-1
- Working Temperature: -30°C to +70°C
- Humidity: 20% to 90% RH non-condensing
- Vibration: 10-500Hz, 2G
- MTBF: 653.5K hours (military standard)
- EMC Compliance: EN55022 Class B, EN61000-3-2/-3
Buy the Mean Well Series EPS Power Supply: EPS12012
Purchase the Mean Well EPS12012 power supply online today to ensure your industrial automation and control systems operate with maximum efficiency and reliability. This unit features a compact design, high efficiency up to 91%, low no load power consumption below 0.3W, and comprehensive protections including overload, over voltage, and over temperature. Suitable for various industrial environments, it is compliant with international safety standards and provides a stable, safe power source for demanding applications. Order now to enhance your equipment's performance and ensure uninterrupted operations.
Get Mean Well EPS12012 today—built for industrial reliability, efficiency, and long-lasting performance.
Frequently Asked Questions
Where can I buy MEAN WELL EPS12012?
You can click on the BUY or RFQ button to purchase EPS12012 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS12012?
You can download the EPS12012 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS12012?
MEAN WELL
