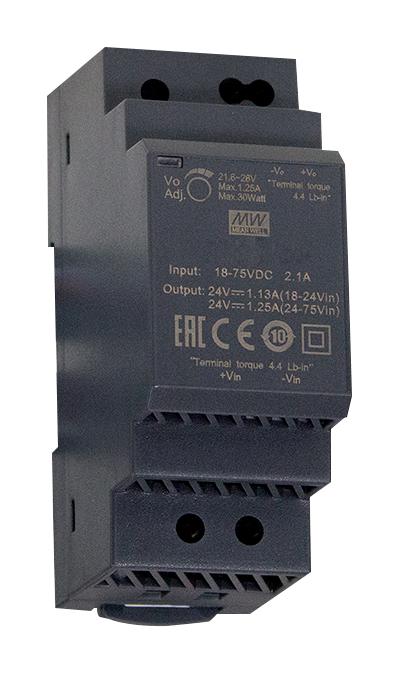

MEAN WELL DDR30G5 Industrial DC-DC Converter
The DDR-30G5 series is a 30W DIN Rail DC-DC converter designed for industrial automation and control systems. It features ultra-wide 4:1 input voltage range of 18-75V, adjustable output voltage (+10%), and operating temperature from -40°C to +85°C. Built with reinforced 4KVdc I/O isolation, it offers protection against short circuits, overcurrent, overvoltage, input reverse polarity, and under-voltage lockout. Compact and slim at 35mm width, it supports DIN rail mounting, ideal for factory automation, communication, wireless networks, and semiconductor equipment in harsh environments.
MEAN WELL DDR30G5 Industrial DC-DC Converter Specifications:
- Power rating: 30W
- Input voltage: 18-75V DC (G: 9-36V, L: 18-75V)
- Output voltages: 5V, 12V, 15V, 24V DC
- Output current: 6A (for 5V), 2A (for 12V/15V/24V)
- Ripple & noise: Max. 75mVp-p
- Efficiency: up to 91%
- Isolation: 4KVdc reinforced
- Working temperature: -40°C to +85°C
- Dimensions: 58.4mm (W) x 90mm (H) x 54.5mm (D)
- Mounting: DIN rail TS-35/7.5 or TS-35/15
- Protections: Short circuit, overload, overvoltage, reverse polarity, undervoltage lockout
- Cooling: Free air convection
- Certifications: IEC 62968-1 (LVD), UL 508 references
- MTBF: 483,300 hours (typical)
Buy the Mean Well DDR-30G5 U+2013 Reliable Industrial Power Supply for Automation
Experience superior power conversion with the DDR-30G5 industrial DC-DC converter, offering 30W output, ultra-wide input voltage, and high-temperature operation. Its reinforced 4KVdc isolation and comprehensive protections ensure reliable performance in factory automation, communication systems, and harsh environments. Compact design with DIN rail mounting allows easy installation on TS-35/7.5 or TS-35/15 rails, making it perfect for automation and control applications across diverse industrial fields. Upgrade your industrial power solutions today with confidence.
Buy Mean Well DDR-30G5 now and experience unmatched reliability, high efficiency, and wide input range ideal for industrial automation and factory control.
Frequently Asked Questions
Where can I buy MEAN WELL DDR30G5?
You can click on the BUY or RFQ button to purchase DDR30G5 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DDR30G5?
You can download the DDR30G5 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DDR30G5?
MEAN WELL
