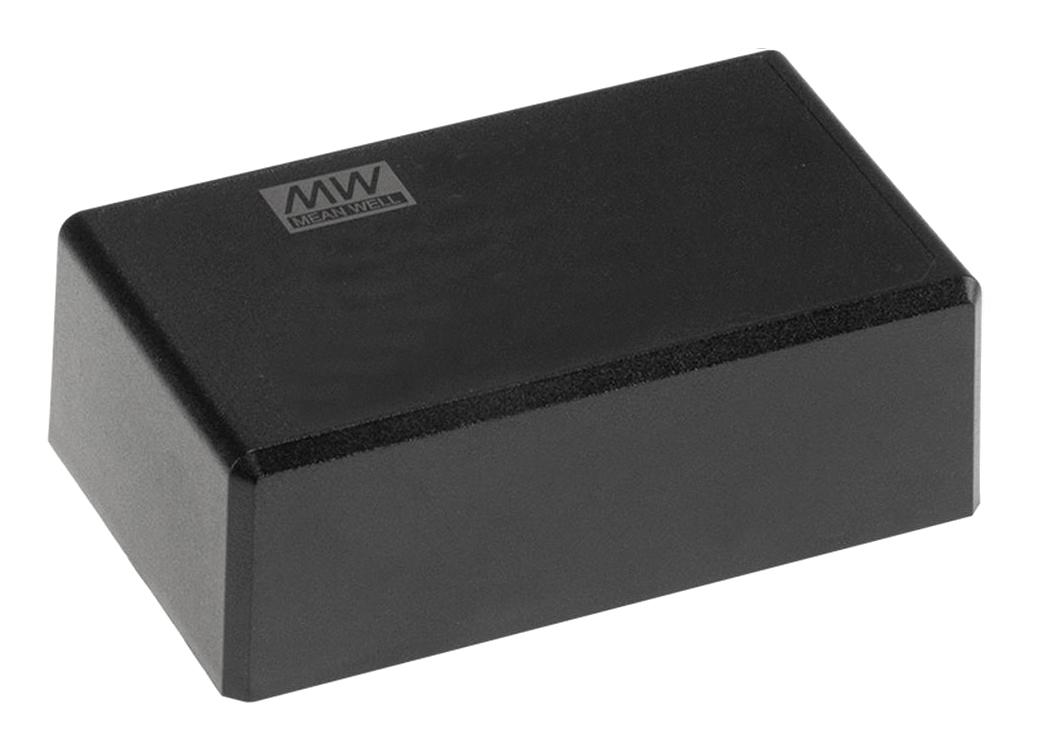

MEAN WELL MPM6548 Medical Power Supply
MPN-65 is a compact, high-density medical-grade power supply delivering 65W with dimensions of 87x52x29.5mm. Operating from 80 to 264VAC, it offers efficiency up to 93%, low no-load power consumption under 0.1W, and ultra-low leakage current. Designed for BF patient contact devices, it features double insulation (Class II), 4KVAC isolation, and meets IEC/EN60601-1 and ANSI/AAMI ES60601-1 standards. With protections against short circuit, overload, and over voltage, it can operate reliably at altitudes up to 4000 meters, suitable for medical equipment requiring aesthetics, safety, and performance.
MEAN WELL MPM6548 Medical Power Supply Specifications:
- Model: MPM-65 series with options for PCB or screw terminal mounting
- Input Voltage: 80~264VAC
- Output Voltages: 12V, 15V, 24V, 48V with corresponding peak and rated power
- Efficiency: up to 93%
- Power: 65W rated, peak 71W for 10 seconds
- Ripple & Noise: up to 240mVp-p depending on model
- Voltage Tolerance: ±2%
- Line Regulation: ±0.5%
- Load Regulation: ±1.0% or less
- Operating Temperature: -30°C to +80°C
- Isolation: 4KVAC (primary-secondary)
- Protection: Short circuit, overload, over voltage, over temperature
- Standards: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Dimensions: 87x52x29.5mm (PCB mount), 109x52x33.5mm (screw terminal)
- Working Altitude: up to 4000 meters
- Leakage Current: <100μA
- Vibration & Shock: 2~5G anti-vibration depending on model
- MTBF: >563,000 hours
Buy the Buy MW 65W Medical Power Supply Part Number MPM-65 Online
Secure your medical equipment’s power needs with MW MPM-65, a compact and highly efficient 65W power module. It complies with stringent IEC/EN60601-1 standards, featuring low leakage current, high efficiency up to 93%, and robust protections against short circuits, overloads, and overvoltage. Designed for BF patient-contact devices, it ensures safety, durability, and excellent electromagnetic compatibility. Its small size and versatile mounting options make it ideal for medical monitors, portable devices, and clinical workstations. Purchase MW MPM-65 online today for reliable, safe power tailored to healthcare environments.
Get MW MPM-65 today—built for medical safety, reliable performance, and efficient power conversion for critical healthcare applications.
Frequently Asked Questions
Where can I buy MEAN WELL MPM6548?
You can click on the BUY or RFQ button to purchase MPM6548 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM6548?
You can download the MPM6548 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM6548?
MEAN WELL
