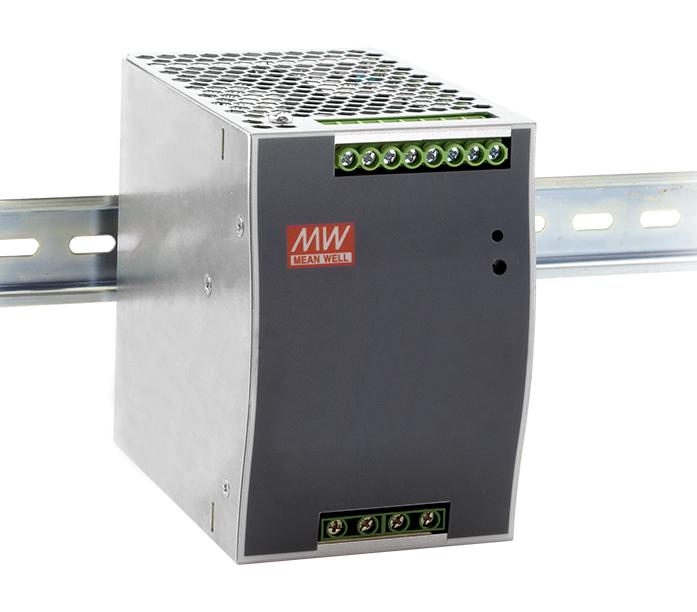

MEAN WELL DDR480B48 DC-DC Converter
The DDR-480 series is a 480W DIN Rail mounted DC-DC converter designed for industrial, railway, and communication systems. It features a slim width of 85.5mm, wide input voltage range, fanless operation, exceptionally wide temperature tolerance from -40°C to +80°C, and full protective functions including short circuit, overload, over voltage, over temperature, input reverse polarity, and under voltage protection. With reinforced 4KV I/O isolation, current sharing capabilities up to 1920W, and remote ON-OFF control, it ensures reliable and safe power conversion suitable for demanding environments like railway, industrial automation, and security control systems. Compliance with EN50155, EN45545-2, and UL62368-1 standards makes it ideal for critical safety and communication applications.
MEAN WELL DDR480B48 DC-DC Converter Specifications:
- Rated Power: 480W
- Input Voltage: 16.8~33.6V, 33.6~67.2V, 67.2~154V
- Output Voltage Options: 12V, 24V, 48V
- Output Current: 10A, 20A, 33.4A (depending on model)
- Peak Load Capability: 150%
- Isolation: Reinforced 4KVdc I/O isolation
- Operating Temperature: -40°C to +80°C
- Dimensions: 85.5mm (W) x 125.2mm (H) x 128.5mm (D)
- Cooling: Fanless air convection
- Protections: Short circuit, Overload, Over voltage, Over temperature, Reverse polarity, Under voltage
- Efficiency: Up to 93%
- Compliance: EN50155, EN45545-2, UL62368-1
- Mounting: DIN rail TS-35/7.5 or 15
- Vibration Resistance: IEC61373 compliant
- MTBF: 280,000 hours
Buy the Mean Well Series DDR-480 480W DIN Rail DC-DC Converter: DDR-480B48
Purchase the reliable 480W DIN rail power supply online today to power your industrial, railway, or communication systems. Featuring wide input ranges from 16.8V to 154V, it supports an operating temperature from -40°C to +80°C for demanding environments. With reinforced 4KV I/O isolation, high efficiency up to 93%, and protections against short circuits, overloads, and overvoltage, this fanless, slim module guarantees stable and safe power conversion. Easy DIN rail mounting and compliance with international safety standards make it an ideal choice for secure, high-performance control and automation projects.
Order your Mean Well Series DDR-480B48 480W DIN rail power supply today and ensure reliable power for industrial, railway, and control systems.
