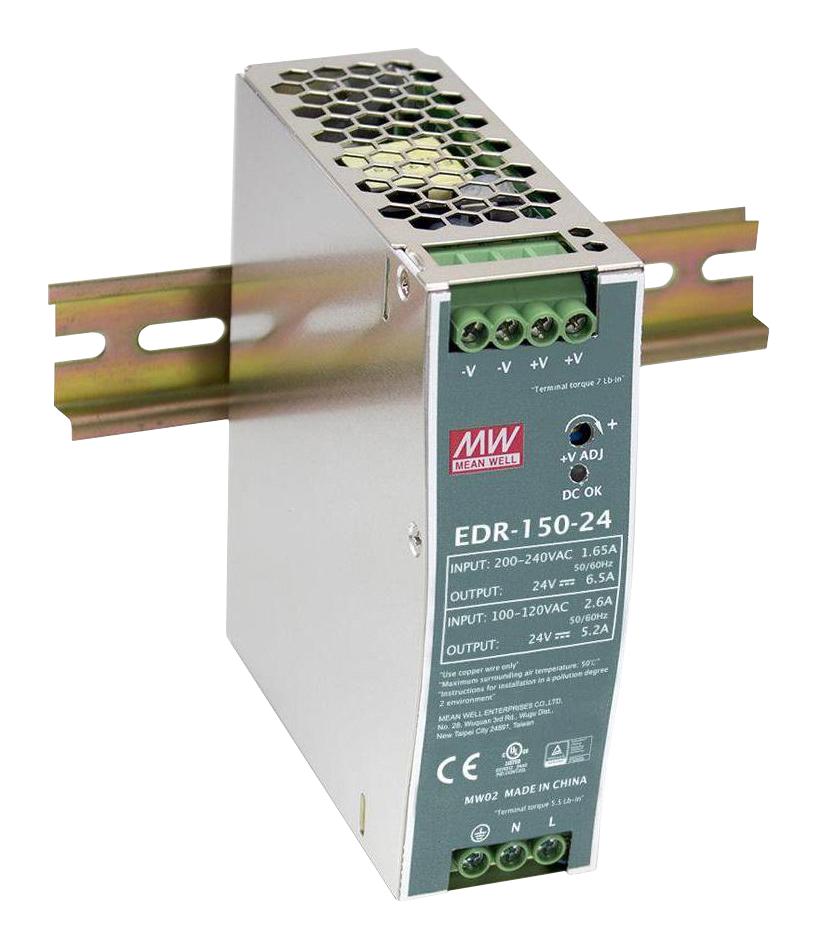

MEAN WELL EDR15024 Industrial DIN Rail Power Supply
EDR-150-24 is an economical slim DIN rail power supply series providing up to 156W at 230VAC input. Designed for easy installation on TS-35/7.5 or TS-35/15 rails, it features a compact 40mm width, full range AC input from 90VAC to 264VAC, and efficiency up to 87%. The unit’s metal housing enhances heat dissipation, supporting ambient temperatures from -20°C to 60°C. It offers protections against short circuits, overloads, overvoltage, and overtemperature, making it ideal for industrial control systems, factories, and automation equipment with UL 508, EN61000 immunity, and other certifications.
MEAN WELL EDR15024 Industrial DIN Rail Power Supply Specifications:
- Input Voltage: 90~264VAC, 127~370VDC
- Output Voltage: 24V, adjustable 24~28V
- Rated Power: 156W at 230VAC, 125W at 115VAC
- Rated Current: 6.5A/230VAC, 5.2A/115VAC
- Ripple & Noise: <150mVp-p
- Efficiency: Up to 87%
- Operating Temperature: -20°C to +60°C
- Protection: Short circuit, overload, overvoltage, overtemperature
- Mounting: TS-35/7.5 or TS-35/15 DIN rail
- Certifications: UL 508, TUV EN60950-1, CE, EN61000-6-2 immunity
- Dimensions: 113.5mm (W) x 125.2mm (H) x 113.5mm (D)
- Weight: Approximately 0.6kg per unit
- Cooling: Air convection
- MTBF: 472,500 hours minimum at 25°C
Buy the Mean Well Series DIN Rail Power Supply: EDR-150-24
Order the Mean Well EDR-150-24 industrial DIN rail power supply online today for your automation projects. Offering 156W of power with high efficiency up to 87%, this slim, robust unit is designed for seamless installation on TS-35/7.5 or TS-35/15 rails. Its full-range AC input, comprehensive protections, and certified safety standards make it ideal for factory automation, control systems, and industrial control equipment. Ensure your system’s reliability and safety with this high-performance, compact power supply, easily available for quick delivery.
Get Mean Well EDR-150-24 today—built for industrial automation and reliable control system voltage needs.
Frequently Asked Questions
Where can I buy MEAN WELL EDR15024?
You can click on the BUY or RFQ button to purchase EDR15024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EDR15024?
You can download the EDR15024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EDR15024?
MEAN WELL
