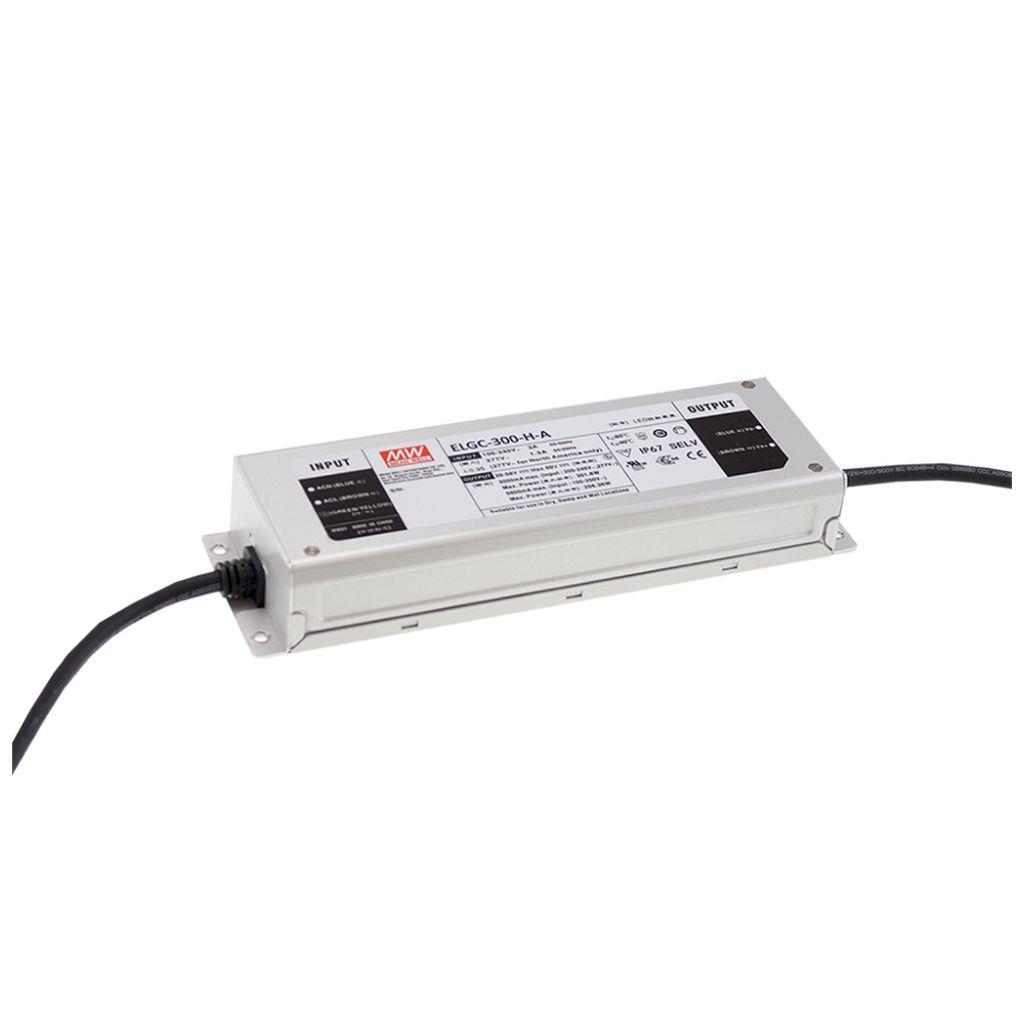

MEAN WELL ELGC300HAB 300W LED Driver
The MEAN WELL ELGC-300-H-AB series is a 300W LED AC/DC driver designed for constant power mode and high voltage output. It operates from 100~305VAC and offers models with different rated current ranging between 1300mA and 8000mA. With high efficiency up to 94.5%, the series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection allows this series to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, to provide the optimal design flexibility for LED lighting system.
MEAN WELL ELGC300HAB 300W LED Driver Specifications:
- Model: ELGC-300-H-AB
- Rated Power: 256W
- Input Voltage: 100~305VAC
- Output Voltage: 121~145V
- Output Current: 650~1700mA
- Frequency Range: 47 ~ 63Hz
- Efficiency: 94.5%
- Power Factor: 0.97
- IP Level: IP67
- Safety Standards: Compliance to BS EN/EN61347-1
- Working Humidity: 20 ~ 95% RH
- Storage Temp. Humidity: -40 ~ +80℃, 10 ~ 95% RH
- MTBF: 1637.5K hrs
- Dimension: 246*77*39.5mm
- Surge Protection: 6kV/4kV
- Isolation Resistance: 100M Ohms
- Constant Current Region: 100 ~ 305VAC
- Over Voltage Protection: Shut down output voltage
- Over Temperature Protection: Tcase>85℃±5℃
- Temp. Coefficient: ±0.03%/℃
- Current Ripple: 5.0% max.
- Current Tolerance: ±5%
- Setup Time: 500ms
Buy the ELGC-300-H-AB MEAN WELL 300W LED Driver | myMectronic
Purchase the MEAN WELL ELGC-300-H-AB LED Driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL ELGC300HAB?
You can click on the BUY or RFQ button to purchase ELGC300HAB from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ELGC300HAB?
You can download the ELGC300HAB datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ELGC300HAB?
MEAN WELL
