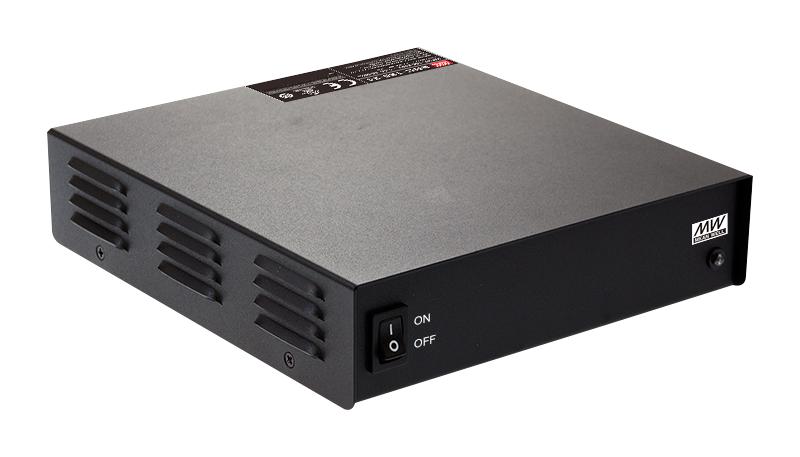

MEAN WELL ENP18048 Communication Power Supply
The ENP-180 series is a compact 180W desktop power supply designed for communication systems and land mobile radio applications. It features high efficiency, Level VI energy compliance, and a rugged mechanical construction for reliable operation in environments from -30°C to +70°C. With built-in protections against short circuits, overloads, overvoltage, and overheating, it offers peak loads up to 125%, ensuring long-term durability. The fanless, convection-cooled design makes it ideal for space-constrained setups requiring stable, efficient power with minimal noise and power consumption below 0.15W at no load. Suitable for surveillance, radio, and antenna equipment.
MEAN WELL ENP18048 Communication Power Supply Specifications:
- DC Voltage: 13.8V, 25.2V, 55.2V
- Rated Current: 13A, 6.5A, 3.34A
- Rated Wattage: 179W, 179W, 1820W
- Peak Power: 225W, 226W, 418W
- Ripple & Noise: 150mVp-p, 150mVp-p, 2350mVp-p
- Voltage Adjustment Range: 11.5~15V, 23.5~30V, 47.5~58.8V
- Voltage Tolerance: ±1.0%
- Line Regulation: ±0.5%
- Load Regulation: 20%~100% rated load, ±1.0%, ±0.5%
- Setup Time: 1000ms, 100ms at full load
- Hold-up Time: 20ms
- Input Voltage Range: 90~264VAC, 127~370VDC
- Frequency Range: 47~63Hz
- Efficiency: 91%-94%
- Power Factor: >0.98 at 115VAC, >0.95 at 230VAC
- No-load Power Consumption: <0.15W
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Operating Temperature: -30°C to +70°C
- Humidity: 20%~95% RH non-condensing
- Dimensions: 192 x 45.5 x 50 mm
- Certifications: IEC60950-1, UL60950-1, approved per EMC standards
- MTBF: 470,600 hours (minimum)
- Vibration: 10~500Hz, 26m/s² for 10 mins along each axis
Buy the Buy Mean Well ENP18048 Power Supply Part Number ENP18048 Online
Experience reliable, energy-efficient power delivery with the Mean Well ENP18048 power supply. Engineered for communication systems and land mobile radios, it delivers 180W with Level VI energy efficiency. Its rugged construction features a fanless, convection-cooled design suitable for harsh environments from -30°C to +70°C. Protects against short circuits, overloads, overvoltage, and temperature extremes, ensuring continuous operation. Compact and durable, this power supply is ideal for surveillance, radio, antenna, and other communication applications, providing long-lasting, stable power in critical setups.
Get Mean Well ENP18048 power supply today—designed for high efficiency, rugged durability, and reliable performance in communication equipment.
Frequently Asked Questions
Where can I buy MEAN WELL ENP18048?
You can click on the BUY or RFQ button to purchase ENP18048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ENP18048?
You can download the ENP18048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ENP18048?
MEAN WELL
