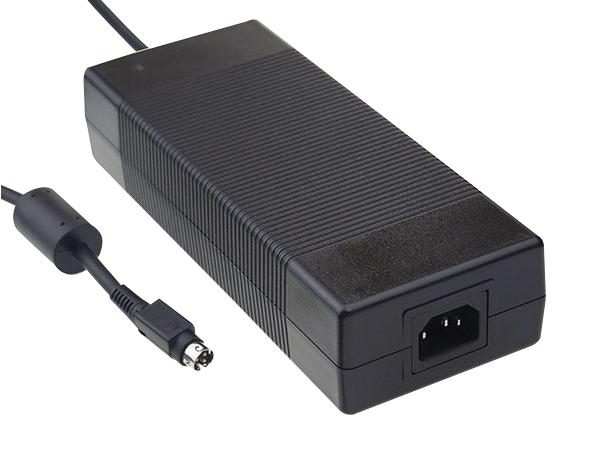

MEAN WELL GSM220A15R7B Medical Power Adapter
GSM220A15R7B is a high-reliability, 220W medical power adapter designed for versatile healthcare applications. It offers an efficient, low-leakage, UL/IEC62103 approved solution with an input range of 80VAC to 264VAC and output voltages from 12VDC to 48VDC. Featuring ultra-low noise ripple, high efficiency up to 94.5%, and protection functions including overload, overvoltage, and temperature shutdown, it is suitable for medical devices like dialysis machines, clinical workstations, and patient monitors. The fanless design ensures silent operation, complying with international medical safety standards and energy efficiency requirements.
MEAN WELL GSM220A15R7B Medical Power Adapter Specifications:
- Input voltage range: 80VAC to 264VAC
- Output power: 220W
- Output voltages: 12V, 15V, 20V, 24V, 48V options
- Rated currents: 1A to 15A depending on model
- Ripple & Noise: 80mVp-p to 240mVp-p
- Voltage tolerance: ±4.0% to ±5.0%
- Efficiency: up to 94.5%
- Protection: Overload, overvoltage, overtemperature, short circuit
- Operating temperature: -30°C to +70°C
- Dimensions: 210*85*46mm (L*W*H)
- Working humidity: 20% to 90%
- EMC compliance: EN55011, EN61000-3, FCC Part 15
- Isolation level: 2x MOPP between primary and secondary
- Case: fully enclosed plastic, fanless design
- Certifications: UL, EN60601-1, TUV approved
- Leakage current: <100μA
- Protections: Automatic recovers after fault removal
Buy the Buy Medical Power Supply Part Number GSM220A15R7B Online
Purchase the GSM220A15R7B medical power adapter online today to benefit from a reliable, energy-efficient, and certified power solution. Designed specifically for healthcare devices, it ensures safety, low noise, and high performance with an ultra-low leakage current below 100μA. Its wide input voltage range supports global applications, while protections against overload, overvoltage, and temperature fluctuations keep your equipment safe. The compact, fanless, fully enclosed plastic case makes installation simple and maintenance minimal. Trust this certified adapter to deliver optimal power for critical medical devices like dialysis machines, monitors, and portable systems.
Order your Medical Series GSM220A15R7B medical power adapter today and ensure reliable, safe power supply for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM220A15R7B?
You can click on the BUY or RFQ button to purchase GSM220A15R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM220A15R7B?
You can download the GSM220A15R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM220A15R7B?
MEAN WELL
