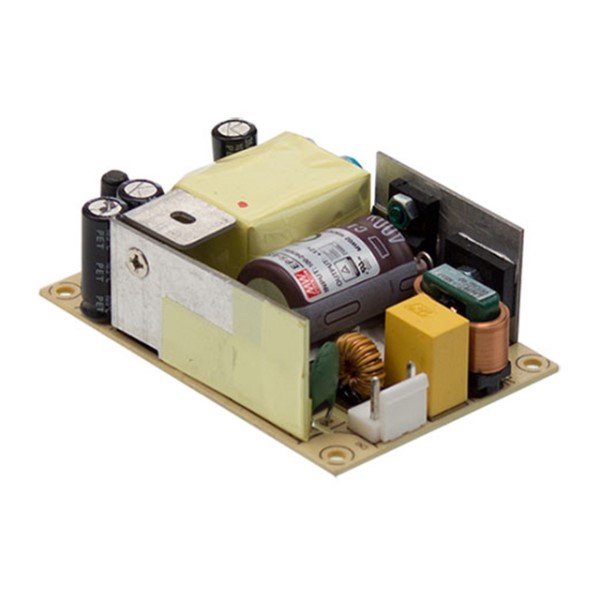

MEAN WELL EPS6512 Single Output Switching Power Supply
The MEAN WELL EPS-65 series provides a reliable and efficient power solution for a wide range of industrial applications. This 65W single output switching power supply boasts universal AC input, ensuring compatibility with various power sources. Its high efficiency (up to 90%) minimizes energy waste, while built-in protections safeguard against short circuits, overloads, and over-voltage conditions. The compact 4”x2” size makes it suitable for space-constrained environments, and the LED indicator provides a clear visual status of the power supply. With a 3-year warranty, the EPS-65-12 offers long-term reliability and peace of mind.
MEAN WELL EPS6512 Single Output Switching Power Supply Specifications:
- rated_current: 5.42A
- rated_power: 39.6W
- input_voltage_range: 90 ~ 264VAC / 127 ~ 370VDC
- output_voltage: 12V
- voltage_adjustment_range: 10.8 ~ 13.5V
- line_regulation: ±0.5%
- load_regulation: ±1.0%
- setup_rise_time: 1000ms, 50ms/230VAC
- hold_up_time: 50ms/230VAC
- efficiency: 82%
- ac_current: 1 A/230VAC
- inrush_current: COLD START 60A/230VAC
- leakage_current: <2mA/240VAC
- overload_protection: 115 ~ 160% rated output power
- over_voltage_protection: 3.7 ~ 4.45V
- working_temperature: -30 ~ +70 ℃
- working_humidity: 20 ~ 90% RH non-condensing
- storage_temperature_humidity: -40 ~ +85 ℃, 10 ~ 95% RH
- mtbf: 563Khrs min.
- dimension: 103.4*62*37mm (with optional CASE)
Buy the EPS-65-12 MEAN WELL Single Output Switching Power Supply | myMectronic
Purchase the MEAN WELL EPS-65-12 securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL EPS6512?
You can click on the BUY or RFQ button to purchase EPS6512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS6512?
You can download the EPS6512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS6512?
MEAN WELL
