MEAN WELL EPS6536 Industrial Power Supply

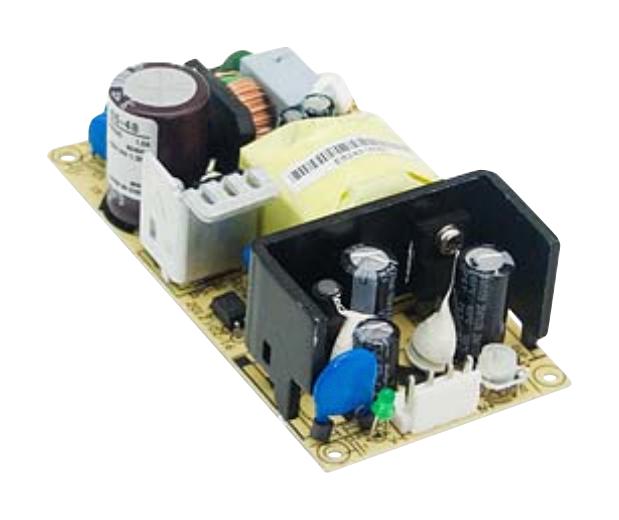

The MEAN WELL EPS-65 series is a compact, high-efficiency 65W single output switching power supply designed for industrial applications. It features universal AC input, protections against short circuit, overload, and overvoltage, and operates efficiently with up to 90% efficiency. Suitable for use up to 4000 meters altitude, it includes optional enclosures and mounting accessories, vibrant LED indicators, and low no-load power consumption. Its robust design supports a wide temperature range, ensures safety and EMC compliance, and offers a 3-year warranty for reliability in diverse industrial environments.
MEAN WELL EPS6536 Industrial Power Supply Specifications:
- Input Voltage: 90~264VAC, 127~370VDC, 47~63Hz
- Output Power: 65W
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V
- Rated Current: 1A to 8A depending on model
- Efficiency: up to 90%
- Protections: Short circuit, Overload, Overvoltage
- Operating Temperature: -30°C to +70°C
- Operating Altitude: up to 4000 meters
- Dimensions: PCB 101.6mm x 50.8mm x 29mm, optional case 103.4mm x 62mm x 37mm
- Vibration: 10~500Hz at 2G
- Safety Standards: UL62368-1, TUV EN62368-1, EAC TP TC 004
- EMC Compliance: EN55032 Class B, EN61000-3-2,-3
- MTBF: >563,000 hours at 25°C
- Cooling: Free air convection
- Additional features: LED power indicator, optional mounting brackets
Buy the MEAN WELL EPS-65 Series – Reliable Industrial Power Supply for Industrial Applications
Purchase your MEAN WELL EPS-65 series 65W power supply online today and enjoy reliable, efficient power delivery for your industrial equipment. This compact unit offers universal AC input, protections against shorts, overload, and overvoltage, and operates at up to 90% efficiency. Suitable for operating at high altitudes up to 4000 meters, it features low no-load power consumption, robust design, and complies with safety and EMC standards for industrial environments. Invest in dependable power with a 3-year warranty, ideal for automation, control systems, and manufacturing machinery.
Order your MEAN WELL EPS-65 series 65W power supply today and ensure dependable performance for your industrial projects with high efficiency and safety features.
Frequently Asked Questions
Where can I buy MEAN WELL EPS6536?
You can click on the BUY or RFQ button to purchase EPS6536 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS6536?
You can download the EPS6536 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS6536?
MEAN WELL
