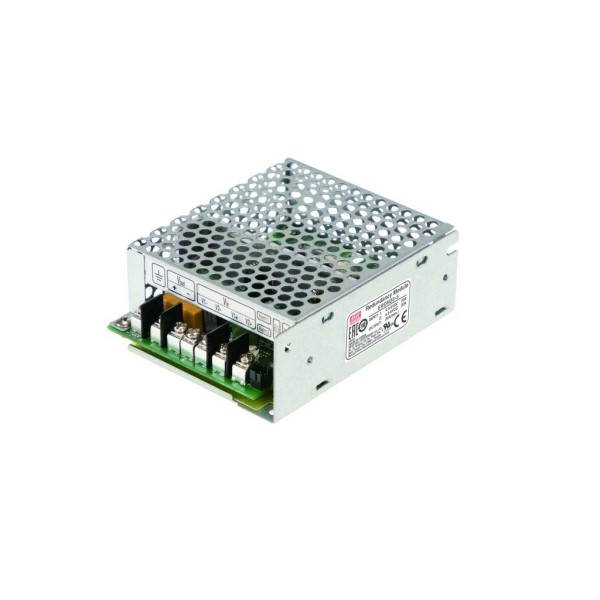

MEAN WELL ERDN2012 Redundancy Module
The MEAN WELL ERDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include 5V/12V/24V/48V input voltage selection, support N+1 and 1+1 redundancy systems, built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80°C.
MEAN WELL ERDN2012 Redundancy Module Specifications:
- Input Voltage: 5V/12V/24V/48V
- Output Current: 20A
- Voltage Drop (Vin-Vout) (max.): 0.2V
- Efficiency (Typ.): 97%
- Safety Standards: IEC62368-1, UL62368-1, EAC TP TC 004
- Working Temperature: -40 ~ +85°C
- Working Humidity: Not specified
- Storage Temperature: Not specified
- Temp. Coefficient: ±0.03%/℃(0 ~ 60℃)
- Vibration: Not specified
- MTBF: 1853.5K hrs min. (Telcordia SR-332) / 378.7K hrs min. (MIL-HDBK-217F)
- Dimension: Not specified
- Packing: 0.206Kg; 45psc/10.3Kg/0.76CUFT
- Overload: 30A, 5Sec. No damage
- Withstand Voltage: 65Vdc
- Isolation Resistance: Not specified
- Environment: BS EN/EN55032(CISPR32)
- EMC Emission: BS EN/EN55032(CISPR32)
- EMC Immunity: BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8
- ESD: Level 4, 15KV air ; Level 3, 8KV contact; criteria A
- Radiated: Level 3, 10V/m ; criteria A
- EFT / Burst: Level 4, 30A/m ; criteria A
- Surge: Level 3, 10V ; criteria A
- Conducted: Level 3, 2KV ; criteria A
- Magnetic Field: Level 3, 2KV ; criteria A
- Harmonic Current: Not specified
- Voltage Flicker: Not specified
- Peak Current (max.): 30A, 5Sec. No damage
- Number of Input: 2 Channels
- Both Inputs Voltage Alarm: =5V, 12V, 24V, 48V
