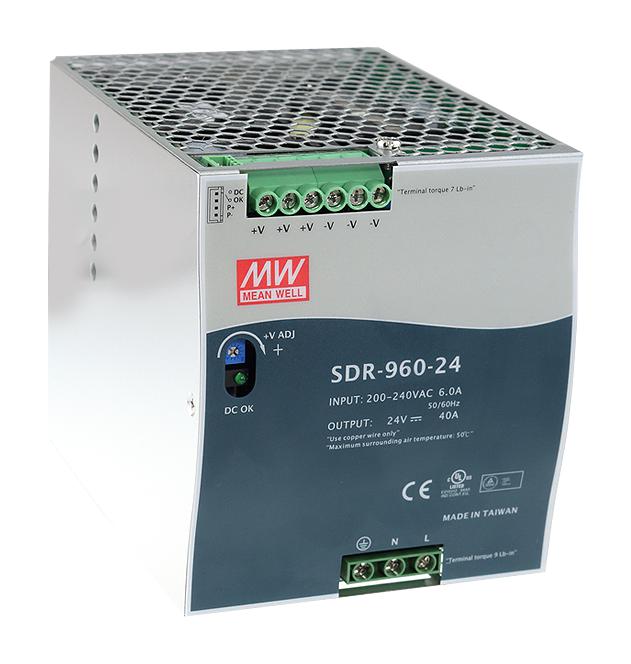

MEAN WELL SDR96024 Industrial Power Supply
The SDR-960 series is a 960W single output industrial power supply designed for DIN rail mounting, featuring high efficiency of 94%, active PFC, and robust protection functions. Suitable for industrial automation, control panels, and machinery, it supports 180-264VAC input, delivers up to 20A at 24V or 10A at 48V, and includes a built-in DC OK relay, parallel operation capability, and low noise characteristics. Its slim 110mm design allows for easy installation and reliable power delivery in demanding industrial environments.
MEAN WELL SDR96024 Industrial Power Supply Specifications:
- Input Voltage Range: 180~264VAC, 254~370VDC
- Output Power: 960W
- Rated Current: 20A at 24V, 10A at 48V
- Peak Power: 1248W for 3 seconds
- Efficiency: 94%
- Ripple & Noise: 180mVp-p at 24V, 250mVp-p at 48V
- Voltage Adjustment Range: 24-28V at 24V output, 48-55V at 48V output
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Cooling Method: Free air convection
- Mounting: DIN rail TS-35/7.5 or 15
- Operating Temperature: -0°C to +70°C
- Humidity: 20% to 95% RH non-condensing
- Safety Certification: UL508, EN60950-1, EN60204-1
- Dimensions: 182mm (W) x 40mm (H) x 125.2mm (D)
- Weight: 2.47 kg
- MTBF: 69,800 hours
- Certifications: UL, TUV approved
Buy the Mean Well SDR-960 U–2013 Reliable Power Supply for Industrial Applications
Enhance your industrial automation systems with the high-efficiency 960W power supply designed for DIN rail installation. Featuring active PFC, built-in protections, and parallel operation capability, it ensures reliable power in demanding environments. Compact and easy to install, it supports input voltages from 180 to 264VAC and delivers stable output at 24V or 48V with minimal ripple and noise. Perfect for control panels, automation equipment, and manufacturing machinery. Order online now for fast delivery and dependable performance.
Buy Mean Well SDR-960 now and experience unmatched reliability and high-performance power delivery for your industrial automation needs.
Frequently Asked Questions
Where can I buy MEAN WELL SDR96024?
You can click on the BUY or RFQ button to purchase SDR96024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SDR96024?
You can download the SDR96024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SDR96024?
MEAN WELL
