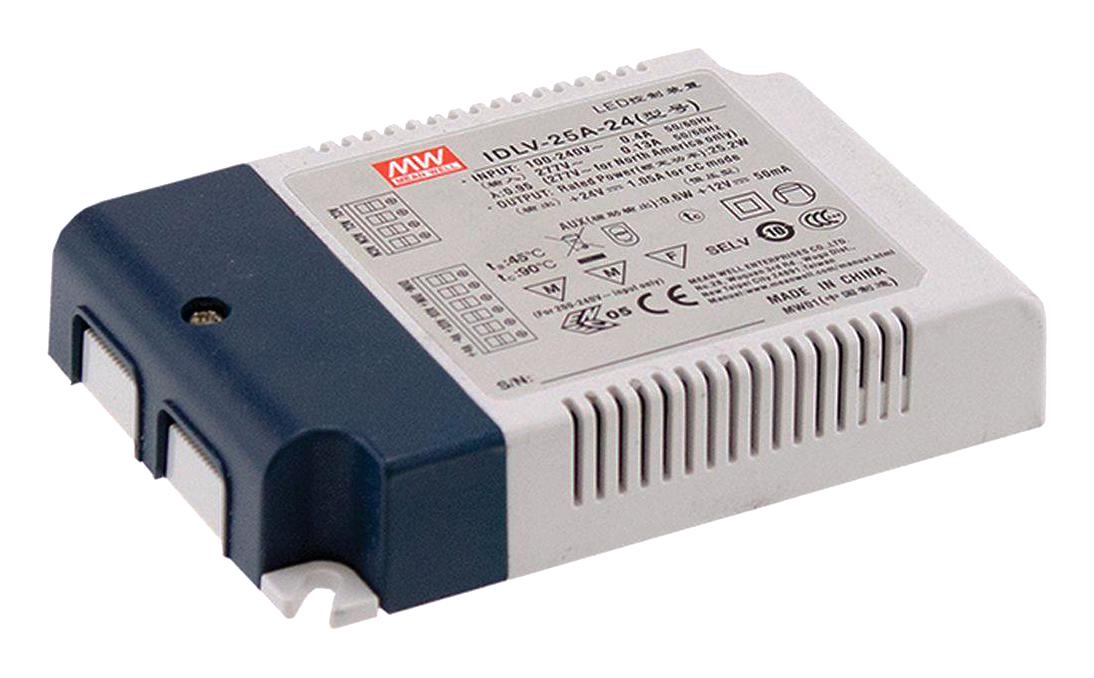

MEAN WELL IDLV25A24 LED Driver
The IDLV-25 series is a 25W LED driver designed for constant voltage PWM output, supporting various rated voltages from 12V to 60V. It features high efficiency up to 84%, IP65 plastic housing, and a fanless design suitable for indoor and architectural lighting. The series offers dual dimming options, including 0-10VDC and 10V PWM, with a frequency of 1KHz, ensuring versatile application in LED strip, decorative, and architectural lighting. It operates reliably across a wide temperature range, with multiple safety and EMC certifications, making it ideal for professional LED lighting installations.
MEAN WELL IDLV25A24 LED Driver Specifications:
- Model: IDLV-25 series with rated output voltages of 12V, 24V, 36V, 48V, 60V
- Rated Power: 21.6W to 25.2W depending on model
- Constant Voltage PWM Output: 1KHz frequency, adjustable dimming 0-100%
- Input Voltage: 90-295VAC ±10%, 127-417VDC ±10%
- Efficiency: up to 84%
- Dimensions: 110 x 75 x 22 mm (L x W x H)
- Operating Temperature: -20°C to +90°C, max case temperature +90°C
- Protection: Short circuit, over current (105-120%), auto-recovery
- Leakage Current: <0.75mA at 277VAC
- EMC Compliance: EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
- Safety: Withstand Voltage 3.75KVAC (input-to-output), insulation resistance >100MΩ
- Vibration: 10-500Hz, 2G, 60 mins per axis
- MTBF: 382,700 hours at 25°C
- Humidity: 20-90% RH non-condensing
- Materials: Plastic housing, IP65 rated for indoor applications
Buy the Mean Well Series LED Driver: 25W PWM Output IP65 DC Power Supply
Enhance your LED lighting setup with the efficient and reliable 25W PWM Output LED Driver. Designed for indoor and decorative lighting, it features adjustable dimming, high efficiency up to 84%, and a sturdy IP65 plastic housing. Easy to install, it supports wide voltage ranges from 90V to 295VAC and incorporates safety features like short circuit protection and auto-recovery. Perfect for architectural, strip, and decorative LED lighting applications, ensuring long-lasting durability and consistent performance for professional lighting systems.
Get Mean Well IDLV-25 series LED driver today—built for high efficiency, versatile dimming options, and reliable indoor LED lighting solutions.
