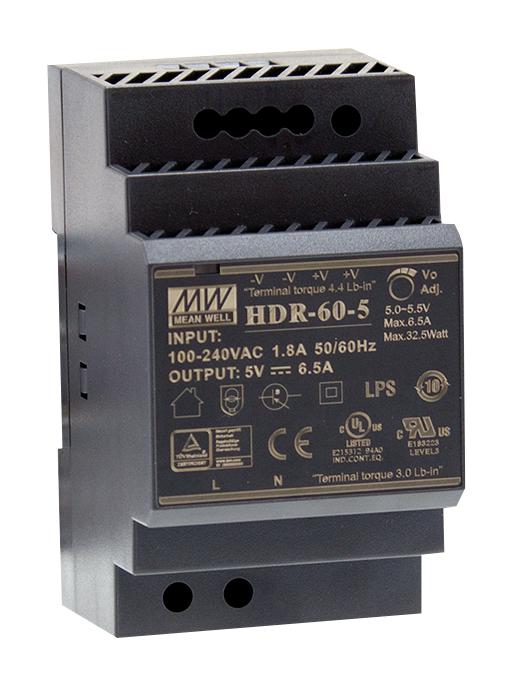

MEAN WELL HDR6012 DIN rail power supply
HDR-60 is an economical, ultra-slim 60W DIN rail power supply designed for space-saving installation in industrial and household automation systems. It features a width of only 52.5mm (3SU), full-range AC input from 85 to 264VAC (277VAC available), and an efficiency of up to 91%. The plastic housing enhances safety by preventing electric hazards. Suitable for -30°C to +70°C, it incorporates protections against short circuit, overload, and overvoltage. Compliant with safety and EMC standards, it is ideal for building automation, factory, and industrial control applications.
MEAN WELL HDR6012 DIN rail power supply Specifications:
- Input Voltage: 85~264VAC (277VAC available)
- Output Power: 60W
- Output Voltage Range: 5.0~55V
- Rated Current: 2.5~6.5A depending on model
- Efficiency: Up to 91%
- Dimensions: 52.5mm (W) x 90mm (H) x 54.5mm (D)
- Protection: Short circuit, Overload, Overvoltage
- Operating Temperature: -30°C to +70°C
- Cooling: Free air convection
- Compliance: UL60950-1, UL508, IEC60950-1, EN61558-2-16
- Certifications: CE, CB, UL listed
- Mounting: TS-35/7.5 or TS-35/15 DIN rail
- Ripple & Noise: Max. 150mVp-p
- Input Frequency: 47-63Hz
- Working Humidity: 20-90% RH non-condensing
- Vibration: 10-500Hz, 2G
- MTBF: 927.6K hours (MIL-HDBK-217F at 25°C)
Buy the MeaWell HDR-60 Reliable Power Supply for Industrial Applications
Purchase the reliable and efficient DIN rail power supply online today to ensure your automation systems operate smoothly. Featuring high efficiency, space-saving design, comprehensive protections, and certified safety standards, this 60W power supply is perfect for industrial, building automation, and factory control applications. Easy to install on TS-35/7.5 or TS-35/15 DIN rails, it offers adjustable voltage and robust performance across a wide temperature range. Secure your supply needs with a trusted brand and get fast delivery for your project’s success.
Order your MeanWell HDR-60 series 60W DIN rail power supply today and ensure stable, space-saving power delivery for your industrial automation needs.
Frequently Asked Questions
Where can I buy MEAN WELL HDR6012?
You can click on the BUY or RFQ button to purchase HDR6012 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HDR6012?
You can download the HDR6012 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HDR6012?
MEAN WELL
