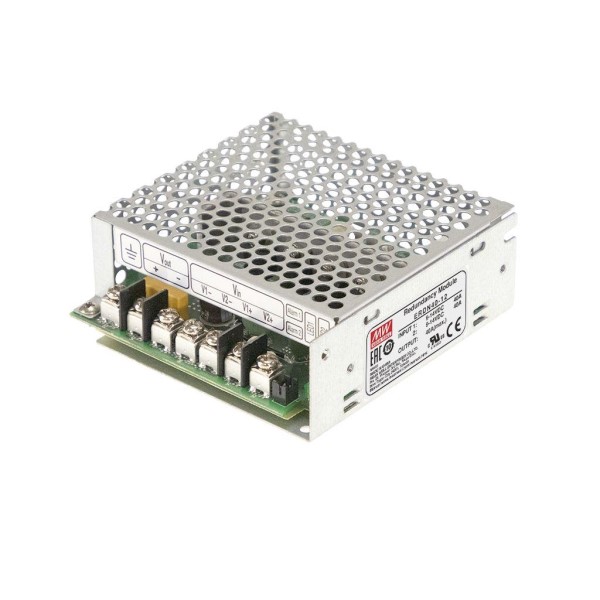

MEAN WELL ERDN4024 40A Redundancy Module
The MEAN WELL ERDN40 series is a 40A redundancy module that can be used with a power supply to improve overall system operation reliability. Key features include 12V/24V/48V input voltage selection, support for N+1 and 1+1 redundancy systems, built-in two rails DC input contacts, and a single output. The MOSFET technology implemented reduces heat loss and the voltage difference between the input and output voltages. It also features built-in 2 channels DC OK relay contacts for monitoring output status and ultra-wide operating temperature.
MEAN WELL ERDN4024 40A Redundancy Module Specifications:
- Input Voltage Range: 12V/24V/48V
- Rated Current: 40A
- Voltage Drop (Vin-Vout) (max.): 0.2V
- Efficiency (Typ.): 98%
- Output: 12V, 24V, 48V
- Safety Standards: IEC62368-1, UL62368-1, EAC TP TC 004
- Working Temperature: -40 ~ +80℃
- Working Humidity: 5 ~ 95% RH non-condensing
- Storage Temperature: -40 ~ +85℃
- Temp. Coefficient: ±0.03%/℃(0 ~ 60℃)
- Vibration: Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373
- MTBF: 1687.9K hrs min. (Telcordia SR-332); 294.1K hrs min. (MIL-HDBK-217F)
- Dimension: 97*99*36mm (W*D*H)
- Weight: 0.276Kg
- Packing: 45psc/14Kg/0.94CUFT
- Withstand Voltage: IP/OP - Chassis: 0.5KVac; IP/OP- Relay: 0.5KVac; Relay - Chassis: 0.5KVac
- Isolation Resistance: >100M Ohms / 500Vdc / 25℃/ 70% RH
- Peak Current (max.): 60A
- Input Reverse Current (max.): 1mA
- Input Reverse Voltage (max.): 40Vdc
- LED Status Display: Green LED - OK
- Redundancy: Supports 1+1 and N+1 redundancy systems
- Number of Input Channels: 2 Channels
- Cooling: Free air convection
- Capacitance (Typ.): 320uF
- Standby Power Losses (Typ.): 1.5W
- EMC Emission (Radiated): Class B
- EMC Immunity (Radiated): Level 3, 10V/m ; criteria A
- EMC Immunity (Surge): Level 4, 30A/m ; criteria A
