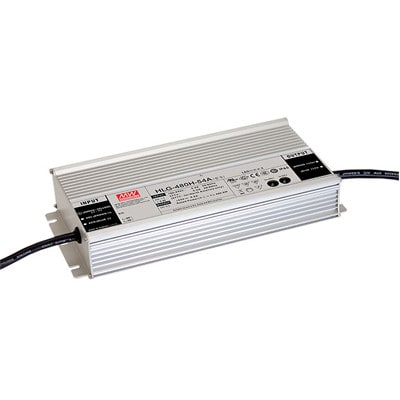

MEAN WELL HLG480H24A 480W LED Driver
The MEAN WELL HLG-480H-24A series is a 480W AC/DC LED driver designed for constant voltage and constant current output. Operating from 90～305VAC, it offers models with different rated voltages. With high efficiency (up to 95.5%) and a fanless design, it can operate within a wide temperature range (-40℃ ~ +90℃). The metal housing and IP67/IP65 ingress protection make it suitable for both indoor and outdoor applications. It includes dimming methodologies and is ideal for LED harbor lighting, greenhouse lighting, stadium lighting, and mining lighting.
MEAN WELL HLG480H24A 480W LED Driver Specifications:
- rated_wattage: 480W
- constant_voltage_constant_current: Dual mode output
- input_voltage_range: 90～305VAC
- output_voltage: 24V
- output_current_range: 10 ~ 20A
- efficiency: Up to 95.5%
- operating_temperature: -40℃ ~ +90℃
- ingress_protection: IP65/IP67
- dimming_options: 3 in 1 dimming (dim-to-off, isolated design), smart timer
- lifetime: > 62000 hours
- warranty: 5 years
- line_regulation: ±0.5%
- load_regulation: ±0.5%
- setup_rise_time: 16ms
- hold_up_time: 500ms
- leakage_current: <0.75mA
- isolation_voltage: I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
- mtbf: 345.5K hrs min.
- dimension: 262*125*43.8mm
