MEAN WELL GEM12I09P1J 12W Medical Adaptor

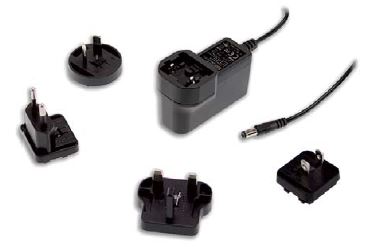

The MEAN WELL GEM12I09-P1J is a highly reliable, 12W wall-mounted green medical adaptor series designed for portability and convenience. Equipped with interchangeable AC plugs, it caters to international users. This unit accepts a wide input range (80VAC to 264VAC) and meets international medical standards with ultra-low leakage current. Its energy efficiency and compact design make it ideal for medical electrical devices, contributing to energy savings and user safety.
MEAN WELL GEM12I09P1J 12W Medical Adaptor Specifications:
- rated_wattage: 12W
- series_name: GEM12
- input_voltage_range: 80VAC to 264VAC
- output_voltage: 9V
- rated_current: 1.33A
- current_range: 0 ~ 1.33A
- ripple_and_noise: 60mVp-p
- voltage_tolerance: ±5.0%
- line_regulation: ±4.0%
- load_regulation: ±3.0%
- efficiency: 82%
- leakage_current: <10μA
- safety_standards: EN60601-1, ANSI/AAMI ES60601-1
- working_temperature: -20 ~ +70℃
- mtbf: 400Khrs min.
- dimension: 73.9*39*48.5mm
- protection: Short circuit / Overload / Over voltage
Buy the GEM12I09-P1J MEAN WELL 12W Medical Adaptor | myMectronic
Purchase the MEAN WELL GEM12I09-P1J securely and reliably for your medical device applications.
Buy Now
