MEAN WELL IRM015S Miniature Power Supply Module
IRM-01 is a compact 1W AC-DC power supply module measuring 33.7 by 22.2 by 15mm, suitable for PCB mounting or SMD installation. It features a universal input range of 85~305VAC, high efficiency up to 77%, and low no-load power consumption below 0.075W, making it ideal for industrial automation and electronic equipment. The encapsulated design with phenolic case and fully-potted silicone provides excellent heat dissipation, dust, moisture resistance, and anti-vibration capability up to 5G. Compliance with EN55022 Class B EMC standards ensures electromagnetic interference suppression, while protections against short circuits, overloads, and overvoltage enhance reliability.
MEAN WELL IRM015S Miniature Power Supply Module Specifications:
- Input Voltage Range: 85~305VAC
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Power: 1W
- Ripple & Noise: Max 150mVp-p (varies by model)
- Efficiency: Up to 77%
- No-load Power Consumption: <0.075W
- Line & Load Regulation: ±2.5% (varies by model)
- Working Temperature: -30°C to +85°C
- Vibration Resistance: Up to 5G
- Isolation Voltage: 3KVAC (U/P)
- Safety Standards: UL60950-1, TUV EN60950-1, optional IEC60601-1
- Dimensions: 33.7mm x 22.2mm x 15mm
- Compliance: EN55022 Class B EMI

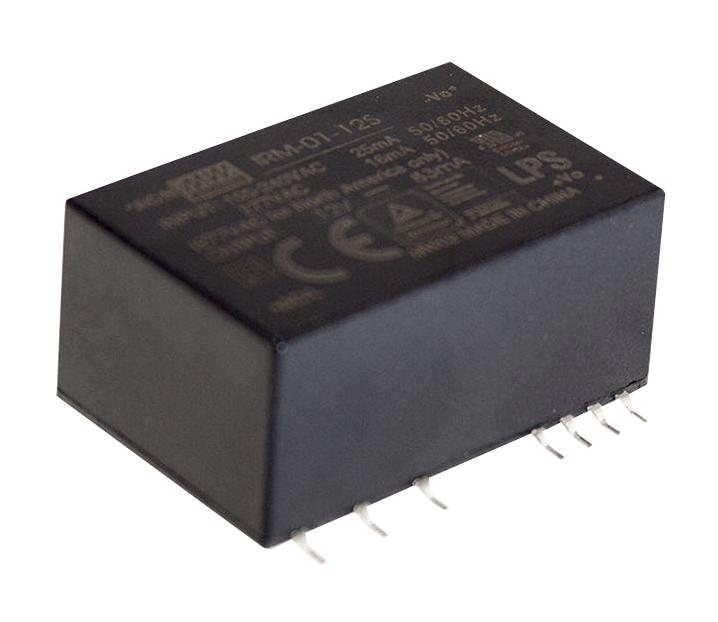

Buy the Mean Well IRM–01 Reliable Power Supply for Industrial Applications
Enhance your electronic projects with the high-quality IRM-01 power supply module from Mean Well. This 1W, encapsulated design offers universal input, high efficiency up to 77%, and complies with strict EMC standards. Its robust construction provides excellent thermal dissipation, dust and moisture protection, and anti-vibration features up to 5G. Perfect for industrial automation, factory equipment, and electronic instruments, this module ensures reliable performance with protections against short circuits, overloads, and overvoltage, making it a smart choice for efficient, safe power delivery. Buy online today to ensure your systems are powered by trusted, high-performance components.
Order your Mean Well Series IRM-01 power supply today and equip your industrial and automation projects with dependable, efficient power modules.
Frequently Asked Questions
Where can I buy MEAN WELL IRM015S?
You can click on the BUY or RFQ button to purchase IRM015S from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM015S?
You can download the IRM015S datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM015S?
MEAN WELL
