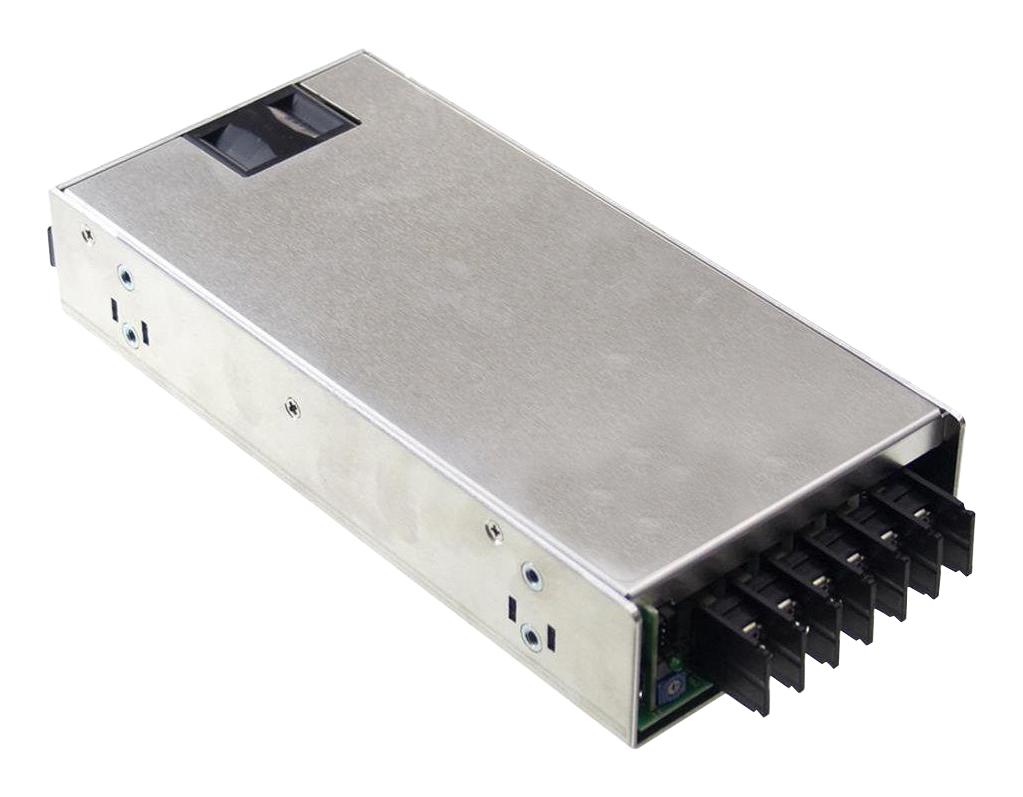

MEAN WELL HRP45033 Industrial Power Supply
The HRP-450 series is a high-efficiency 450W single-output power supply featuring active PFC with PF>0.95, full-range universal AC input, and protection against short circuit, overload, overvoltage, and over temperature. Equipped with built-in cooling fan control, remote sense function, and DC OK signal, these power supplies are ideal for industrial automation, control systems, and telecom applications. They deliver stable voltage and current with ripple and noise control, operating reliably from -40°C to +70°C, ensuring consistent performance in demanding environments.
MEAN WELL HRP45033 Industrial Power Supply Specifications:
- Input Voltage: 85-264VAC, 120-370VDC
- Output Power: 450W
- Output Voltage Range: 3.3V to 48V (various models)
- Rated Current: 0A to 90A (for 5V model), other models vary
- Ripple & Noise: 80-240mVp-p depending on model
- Efficiency: Up to 89.5%
- Protections: Short circuit, Overload (105-135%), Over voltage, Over temperature
- Cooling: Built-in fan control, ON-OFF based on load
- Operating Temp: -40°C to +70°C with derating
- Humidity: 20-90% RH non-condensing
- Standards: UL62368-1, TUV EN62368-1, EAC
- Dimensions: 218*105*41 mm
- Weight: 1.19 kg
- Power Factor: >0.95 at 230VAC
- Inrush Current: 35A/115VAC, 70A/230VAC
- Leakage Current: <1.5mA/240VAC
- Vibration Resistance: 10-500Hz, 5G
- Minimum MTBF: 139.9K hours at 25°C
Buy the Buy Mean Well HRP-450 Series Part Number HRP-450-33 Online
Get your reliable 450W power supply from the HRP-450 series online today. Featuring active PFC, universal input voltage, and comprehensive protections, this power supply ensures stable operation in demanding environments. Its built-in fan control and remote sensing capabilities optimize performance and efficiency, making it ideal for industrial automation, control panels, and telecommunication equipment. Purchase now to benefit from fast delivery, OEM quality, and trusted performance for your essential power needs.
Order your Mean Well HRP-450 series 450W power supply today and ensure reliable, efficient power delivery for your industrial automation and control systems.
