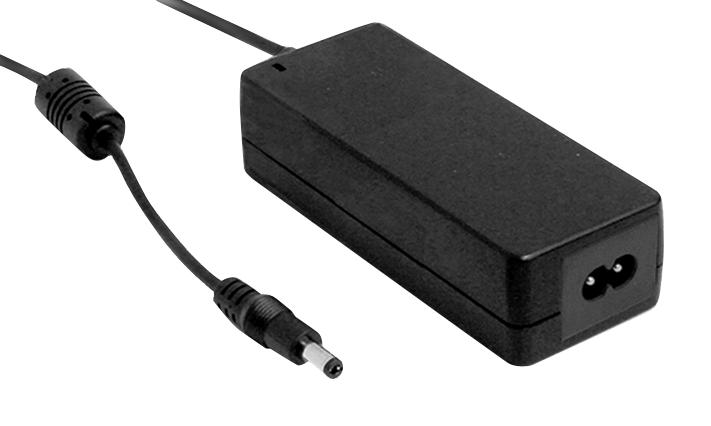

MEAN WELL GSM60B05P1J Medical Power Adapter
GSM60B series is a highly reliable 60W medical power adapter designed for medical devices including monitors, hemodialysis machines, and oral irrigators. It features universal AC input (80VAC-264VAC), high efficiency up to 91.5%, low leakage current (<50uA), and meets international medical safety standards with 2*MOPP isolation. Constructed with a flame retardant plastic case, it offers protections against over-voltage, over-current, over-temperature, and short circuits. Suitable for BF applications and equipped with LED power indicator, it supports various output voltages from 5VDC to 48VDC, ensuring safe, stable power for sensitive medical equipment.
MEAN WELL GSM60B05P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC-264VAC, 47-63Hz
- Output Power: 30W to 60W depending on model
- Output Voltage: 5V, 7V, 9V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 6A, 6A, 6A, 5A, 4A, 1.25A respectively
- Efficiency: Up to 91.5%
- Leakage Current: <50uA
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -30°C to +60°C
- Housing: Fully enclosed plastic case, flame retardant (94V-0)
- Safety Certifications: UL, TUV, IEC60601-1, IEC60601-1-11
- Isolation Level: 2xMOPP (medical safety)
- Dimension: 125 x 50 x 31.5mm
- No load Power Consumption: <0.1W
- Compliance: EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP, CoC V5
Buy the Medical Power Supply Series GSM60B 60W: GSM60B05P1J
Purchase the GSM60B series 60W medical power adapter online today. Designed for high reliability, this adapter features universal input, efficiency up to 91.5%, and low leakage current. Perfect for medical devices like monitors, dialysis machines, and oral irrigators, it meets international safety standards. Its compact, flame-retardant case and multiple protections ensure safety and durability. With a 3-year warranty, this power supply guarantees stable, safe operation for sensitive medical applications. Buy now for dependable power solutions tailored for healthcare environments.
Get GSM60B series medical adapter today—built for precision, high efficiency, and long-lasting reliability for your medical equipment.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60B05P1J?
You can click on the BUY or RFQ button to purchase GSM60B05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60B05P1J?
You can download the GSM60B05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60B05P1J?
MEAN WELL
