MEAN WELL GST25B18P1J Industrial Power Adapter
GST25B series is a highly reliable, 25W industrial power adaptor designed for diverse applications, including consumer electronics and industrial equipment. It features universal input voltage (85VAC–264VAC), high efficiency up to 89%, and ultra-low no-load power consumption below 0.075W. Fully enclosed in a flame-retardant plastic case with double insulation, it provides protection against short circuits, overvoltage, and overloads. Certified internationally for safety standards such as UL, TUV, and CE, it operates in temperatures from -30°C to +70°C, ensuring long-lasting performance in demanding environments.
MEAN WELL GST25B18P1J Industrial Power Adapter Specifications:
- Input Voltage: 85~264VAC, 47~63Hz
- Output Voltages: 5V, 7V, 9V, 12V, 15V, 18V, 24V, 28V, 48V
- Rated Power: 20W to 25W depending on model
- Efficiency: Up to 89%
- No Load Power Consumption: <0.075W
- Protections: Short circuit, Overload, Over voltage
- Operating Temperature: -30°C to +70°C
- Dimensions: 79 x 54 x 33 mm (L x W x H)
- Certifications: UL60950-1, CE, CB, CCC, PSE, RCM, KC, EAC
- Safety Isolation: W/P-O/P: 100M Ohms / 500VDC
- Leakage Current: Max 0.25mA at 240VAC
- Working Humidity: 20% to 90% RH non-condensing

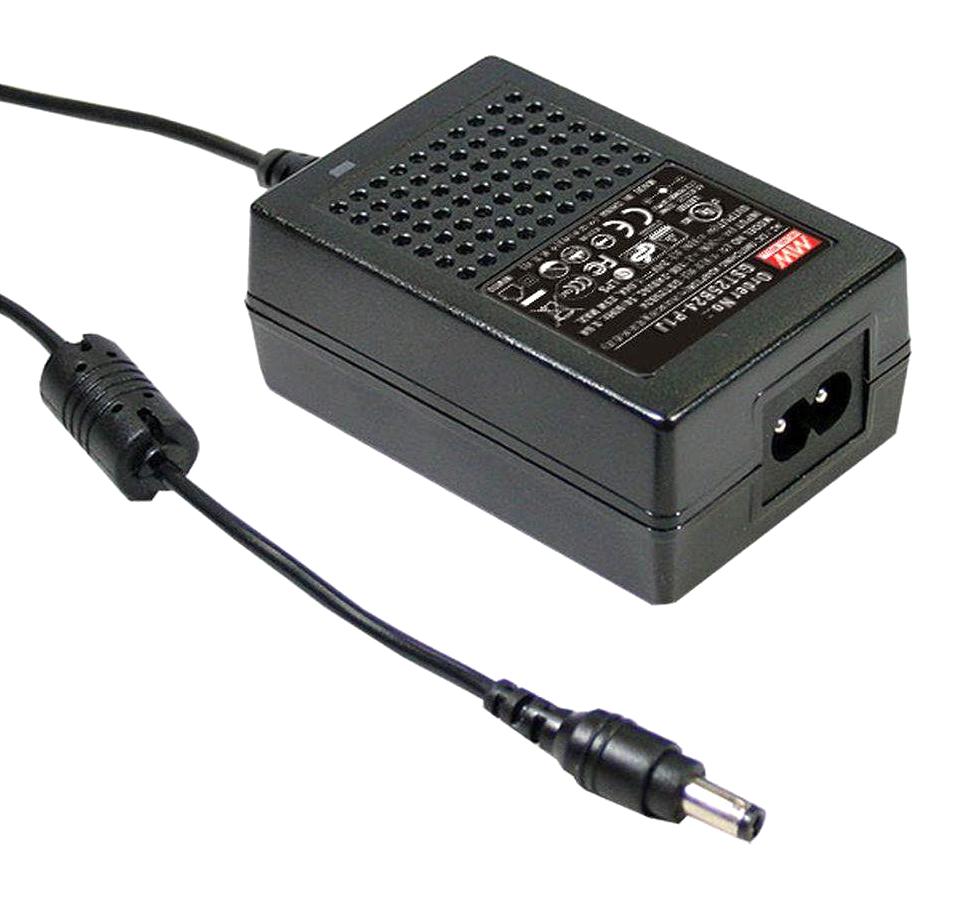

Buy the Mean Well Series GST25B 25W Power Supply: GST25B18P1J
Experience the durability and efficiency of the Mean Well GST25B18P1J industrial power adaptor. With universal input, high efficiency up to 89%, and certified safety standards, this 25W power supply is ideal for industrial applications, consumer electronics, and telecommunication devices. Its compact design, low no-load power consumption below 0.075W, and wide temperature range from -30°C to +70°C guarantee reliable performance in harsh conditions. Purchase online today for energy-efficient, safe, and dependable power conversion.
Get Mean Well GST25B18P1J today—built for industrial reliability and energy efficiency in demanding environments.
Frequently Asked Questions
Where can I buy MEAN WELL GST25B18P1J?
You can click on the BUY or RFQ button to purchase GST25B18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST25B18P1J?
You can download the GST25B18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST25B18P1J?
MEAN WELL
