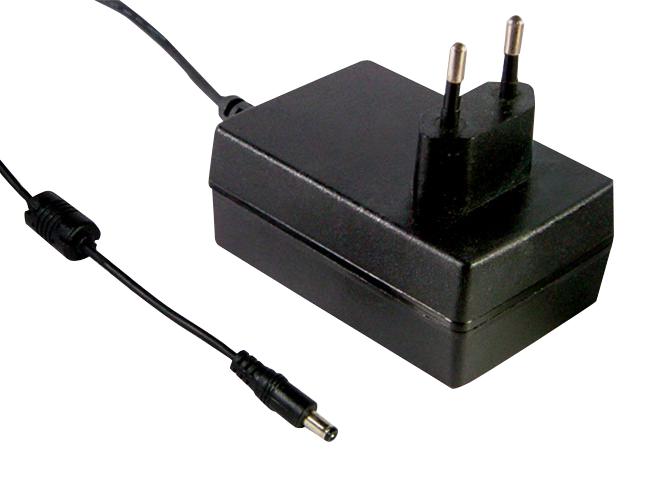

MEAN WELL GST25E15P1J Industrial Power Supply
The GST25E series is a high-reliability, 25W industrial power adaptor designed for various electronic applications. It features a universal input range of 85VAC to 264VAC, energy efficiency up to 89%, and low no-load power consumption below 0.075W. The fully enclosed plastic case provides double insulation and safety compliance. This Class II power supply is suitable for consumer electronics, telecommunication, and industrial equipment, offering protections like short circuit, overload, and overvoltage, with operational temperatures up to +70°C and a five-year warranty.
MEAN WELL GST25E15P1J Industrial Power Supply Specifications:
- Input Voltage Range: 85VAC to 264VAC
- Output Power: 25W
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V (varies by model)
- Efficiency: Up to 89%
- No Load Power Consumption: Less than 0.075W
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, Overload, Overvoltage self-recovery in Hiccup mode
- Flame Retardant Case: 94V-0 plastic
- Safety Standards: TUV EN60950-1, UL, CE, CB
- Dimensions: 79mm x 54mm x 33mm
- Certifications: LPS, EU ErP, CoC V5
- Protection Class: Class II (no earth pin)
- Working Humidity: 20% to 90% RH non-condensing
- Working Temperature Range: -40°C to +85°C storage
- Vibration: 10-500Hz, 2G, 60min periods
- MTBF: Minimum 500,000 hours at 25°C
Buy the Buy MEAN WELL GST25E Series Power Supply Part Number GST25E15P1J Online
Discover the high-quality MEAN WELL GST25E series power adaptor online today. With 25W output, universal input voltage, high efficiency up to 89%, and comprehensive protections including short circuit, overload, and overvoltage, this power supply is ideal for industrial, telecommunication, and consumer electronics. Its compact design, low no-load power consumption, and compliance with safety standards ensure durability and safety. Perfect for demanding environments, purchase today for reliable performance and long-lasting durability in your electronic applications.
Get MEAN WELL GST25E15P1J today—built for high reliability, energy efficiency, and safe operation in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MEAN WELL GST25E15P1J?
You can click on the BUY or RFQ button to purchase GST25E15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST25E15P1J?
You can download the GST25E15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST25E15P1J?
MEAN WELL
