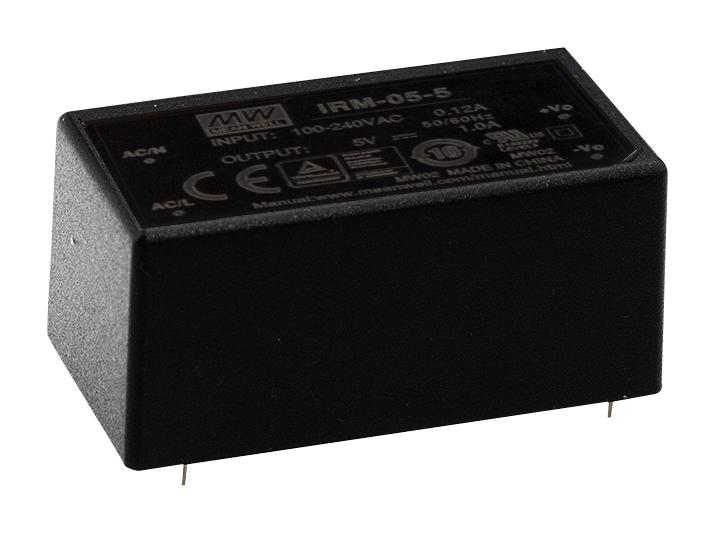

MEAN WELL IRM0533 Encapsulated Power Supply
The IRM-05 series is a 5W single output encapsulated power supply designed for reliable performance in various industrial applications. It features universal AC input ranging from 85V to 264VAC and operates efficiently at ambient temperatures from -30°C to +70°C. The compact, fully encapsulated design ensures durability and safety, with protections including short circuit, overload, and overvoltage protection. Compliant with UL and TUV standards, these power supplies are suitable for use in automation, control systems, and industrial equipment, with high efficiency and low no-load power consumption.
MEAN WELL IRM0533 Encapsulated Power Supply Specifications:
- Power: 5W
- Input Voltage: 85-264VAC, 120-370VDC
- Input Frequency: 47-440Hz
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V
- Rated Power: 4-5.52W
- Efficiency (Typ): 68-75%
- Ripple & Noise: Max 200mVp-p
- Voltage Tolerance: +2.5% to 42.5%
- Line Regulation: 40.3-40.5% (varies by model)
- Load Regulation: 40.5-40.5%
- Setup Time: 600ms, 30ms at full load
- Hold Up Time: 15ms at 115VAC
- Operating Temperature: -30°C to +70°C
- Humidity: 20-90% RH non-condensing
- Storage Temperature: -40°C to +85°C
- Working Humidity: 20-90% RH
- Safety Standard: UL60950-1, TUV EN60950-1
- Isolation Resistance: 100MΩ at 500VDC
- Vibration: 10-500Hz, 5G
- MTBF: 1,495,800 hours
Buy the Mean Well Series IRM 5W Power Supply: IRM-05-3.3
Purchase the reliable Mean Well Series IRM-05-3.3 encapsulated power supply online today. Designed for industrial automation, it offers stable output, high efficiency, and comprehensive protections. Its compact design suits various deployment environments, ensuring safety through UL and TUV certifications. With low no-load consumption and strong performance at -30°C to +70°C, this power supply guarantees your system’s continuous operation. Take advantage of our easy ordering process now for a dependable power solution tailored for control panels, automation, and industrial equipment.
Order your Mean Well Series IRM-05-3.3 high-reliability encapsulated power supply today and ensure your industrial projects operate safely and efficiently.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0533?
You can click on the BUY or RFQ button to purchase IRM0533 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0533?
You can download the IRM0533 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0533?
MEAN WELL
