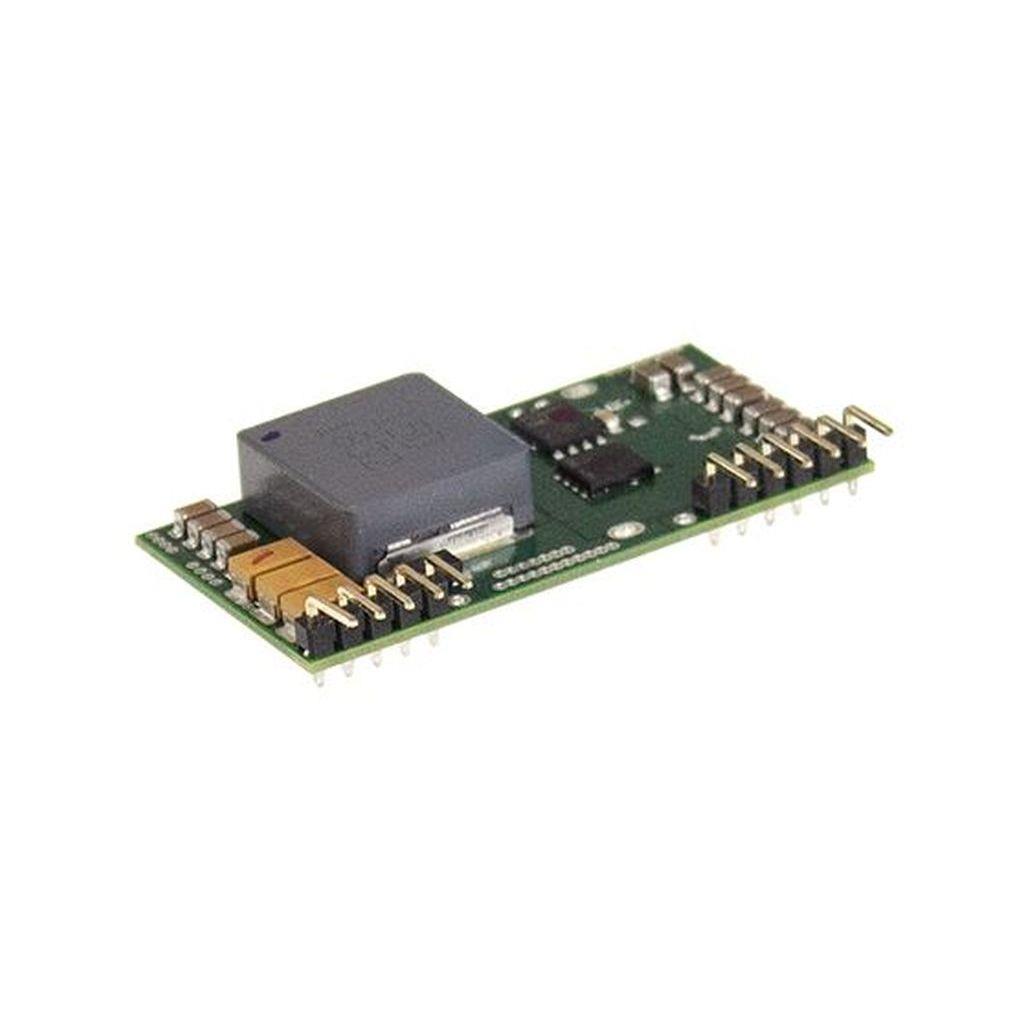

MEAN WELL NID6515 65W DC-DC Converter
The MEAN WELL NID65 series provides a reliable 65W DC-DC non-isolated regulated power supply solution. Designed with an economical open frame, it boasts a wide input voltage range, high efficiency (up to 97%), and remote on/off control functionality. Protections include short circuit, overload, and overvoltage safeguards, ensuring robust performance in demanding industrial environments. The compact size and compliance with BS EN/EN55032 Class A standards make it suitable for a broad range of applications, from automation equipment to LED lighting.
MEAN WELL NID6515 65W DC-DC Converter Specifications:
- Rated Power: 64.5W
- Input Voltage Range: 30 ~ 53VDC
- Output Voltage: 15V
- Output Current Range: 0 ~ 4.3A
- Efficiency: 97%
- Switching Frequency: 200KHz
- Ripple & Noise (max.): 150mVp-p
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Voltage Tolerance: ±2.0%
- Working Temperature: -30 ~ +85℃
- Working Humidity: 20% ~ 85% RH non-condensing
- Storage Temperature: -30 ~ +105℃
- Temperature Coefficient: ±0.03% /℃ (0 ~ 55℃)
- Vibration: 10 ~ 500Hz, 2G 10min./1 cycle
- Dimension: 50.8*26*11mm or 2.0"*1.024"*0.433" inch (L*W*H)
- Weight: 19g; 280psc/6.32Kg/0.94CUFT
- Protection: Short circuit, Overload, Overvoltage, Hiccup mode
- External Capacitance Load (max.): 47uf/50V low ESR
- Safety Standards: BS EN/EN62368-1(LVD)
- EMC Emission: BS EN/EN55032 Class A
- EMC Immunity: BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6
- MTBF: 16602.6K hrs min. (Telcordia SR-332), 890.7K hrs min. (MIL-HDBK-217F)
