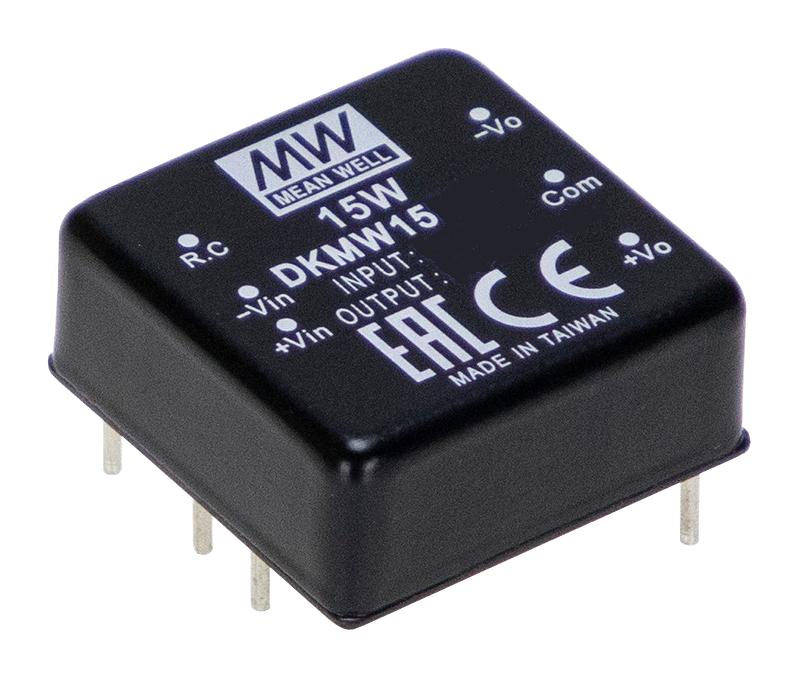

MEAN WELL DKMW15G05 DC-DC Converter
The DKMW15G05 series is a 15W, isolated and regulated DC-DC converter in a compact 1x1 inch DIP package, designed for industrial, telecom, and data communication applications. It features ultra-wide input voltage range of 18-75V, high efficiency up to 89%, and 3KVDC input-output isolation. The converters support multiple output voltages including 3.3V, 5V, 12V, and 15V, with protections such as short circuit, overload, over voltage, and input under voltage. Operating from -40°C to +85°C, they ensure reliable performance in demanding environments and are compliant with EN55032 Class A radiated standards.
MEAN WELL DKMW15G05 DC-DC Converter Specifications:
- Input Voltage Range: 18~75Vdc (G model) or 9~36Vdc (F model)
- Output Voltage Options: 3.3V, 5V, 12V, 15V (single); +5V, +12V, +15V (dual)
- Power Rating: 15W
- Efficiency: Up to 89%
- Isolation Voltage: 3KVDC input-output
- Operating Temperature: -40°C to +85°C
- Protections: Short circuit (continuous), overload, over voltage, input under voltage
- Ripple & Noise: Max. 50mVp-p
- Regulation: Line ±0.5%, load ±0.5%
- Switching Frequency: 300kHz
- Dimensions: 25.4x25.4x10.2 mm
- Connector Pins: Industry standard DIP 1x1 inch
- Safety & Standards: EN55032 Class A compliance, UL/CSA approved
- Cooling: Free-air convection
- Ingress Protection: Suitable for industrial environments
Buy the Mean Well Series DKMW15G05 DC-DC Converter: 15W 18-75V to 3.3V/5V/12V/15V
Discover the high-performance DKMW15G05 series DC-DC converter, offering 15W of power with ultra-wide input voltage range from 18V to 75V. Designed for industrial, telecom, and data communication applications, it guarantees high efficiency up to 89%, reliable 3KVDC isolation, and operating temperatures from -40°C to +85°C. Its compact DIP package simplifies installation, while protections against shorts, overloads, and over voltage enhance safety. Perfect for distributed power architectures and demanding environments—order online today for immediate, dependable power solutions.
Buy Mean Well DKMW15G05 now and experience unmatched reliability and high efficiency for industrial control, telecom, and data systems.
