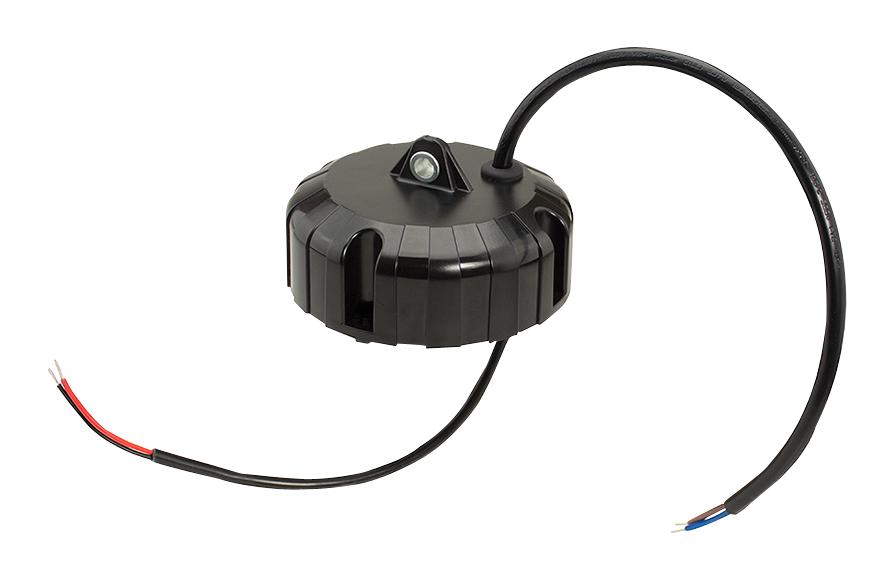

MEAN WELL HBG601050 LED driver
The HBG-60 series is a 60W AC/DC LED driver designed with a circular plastic housing and suitable for various LED lighting applications, including bay, stage, spot, and down lighting. Operating from 90 to 295VAC, it offers constant current output with rated currents between 1050mA and 2100mA. The high efficiency up to 90%, fanless design, and wide temperature range from -40°C to +85°C ensure durability and reliability. Featuring built-in active PFC, class II design, and a lifespan exceeding 50,000 hours, it is ideal for professional and industrial LED installations with a 5-year warranty.
MEAN WELL HBG601050 LED driver Specifications:
- Rated power: 57.75W to 60.9W
- Rated current: 1050mA, 1400mA, 2100mA
- Output voltage: 37-55V, 28-43V, 19-20V depending on model
- Open circuit voltage: up to 60V
- Efficiency: up to 90%
- Input voltage range: 90-295VAC, 47-63Hz frequency
- Power factor: >0.97 at 115VAC, >0.95 at 230VAC, >0.9 at 277VAC
- Total harmonic distortion: <20%
- Max. inrush current: 45A at 230VAC
- Working temperature: -40°C to +85°C
- Case dimensions: 110mm x 60.5mm (D * H)
- Protection: Over temperature, short circuit, over current
- Certifications: UL, CSA, ENEC, CE, others
Buy the Buy MEAN WELL HBG Series 60W Constant Current LED Driver Part Number HBG601050 Online
Purchase the MEAN WELL HBG-60 series LED driver online today for reliable, high-performance LED lighting. With a robust design, efficiency up to 90%, and a lifespan exceeding 50,000 hours, this 60W power supply is suitable for professional installations including bay, stage, spot, and down lighting. Operating from 90-295VAC, it features built-in active PFC, class II safety design, and wide temperature tolerance from -40°C to +85°C. Secure your order now to ensure your LED systems operate efficiently and reliably with our trusted power solutions.
Order your MEAN WELL HBG-60 series 60W LED driver today and enhance your lighting projects with dependable, high-efficiency power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL HBG601050?
You can click on the BUY or RFQ button to purchase HBG601050 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG601050?
You can download the HBG601050 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG601050?
MEAN WELL
