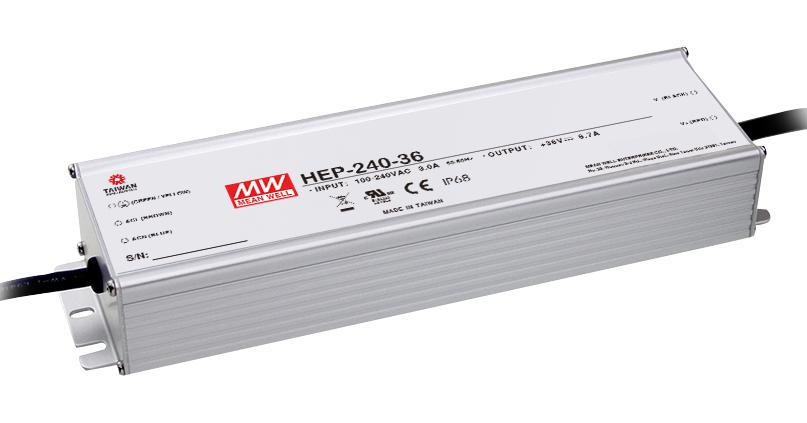

MEAN WELL HEP24036A Industrial Power Supply
The HEP-240 is a robust 240W industrial power supply designed for harsh environments with high dust density, humidity, vibration, and altitude. Encased in an aluminum housing filled with heat-conducting silicone, it offers a high efficiency of up to 93.5% and features a fanless, convection-cooled design capable of operating from -55°C to +70°C. Suitable for outdoor telecommunication, signage, petroleum, and mining applications, it conforms to safety standards, provides reliable protections, and supports an operating altitude up to 5000 meters, making it an ideal choice for demanding industrial uses.
MEAN WELL HEP24036A Industrial Power Supply Specifications:
- Power Output: 240W
- Input Voltage: 90~305VAC, 127~431VDC
- Output Voltage & Current: 12V/16A, 15V/15A, 24V/6.87A, 36V/4.45A, 48V/5A, 54V/4.46A
- Ripple & Noise: 150-350mVp-p depending on model
- Efficiency: Up to 93.5%
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -55°C to +70°C
- Humidity: 20-95% RH non-condensing
- Vibration: 10G at 20-500Hz
- Altitude: Up to 5000 meters
- Certifications: CE, UL, cUL, CB, E
- Ingress Protection: IP65 standard, optional IP68
- Construction: Aluminum case, filled with heat-conducting silicone
- Surge Immunity Level: 6KV
- MTBF: 171,300 hours
- Dimension: 244.2mm x 68mm x 38.8mm
- Warranty: 6 years
Buy the Mean Well HEP-240 U–Reliable Outdoor Power Supply for Industrial Applications
Upgrade your industrial setup with the HEP-240 power supply, engineered for durability and efficiency. Its robust aluminum case, wide operating temperature from -55°C to +70°C, and high surge immunity ensure reliability in outdoor and demanding environments. With class-leading efficiency up to 93.5% and built-in protections, it guarantees safety and optimal performance. Perfect for outdoor telecommunication, signage, petrochemical, and mining applications, the HEP-240 delivers stable power and peace of mind. Purchase online today to ensure continuous, reliable power for your industrial operations.
Buy Mean Well HEP-240 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL HEP24036A?
You can click on the BUY or RFQ button to purchase HEP24036A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HEP24036A?
You can download the HEP24036A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HEP24036A?
MEAN WELL
