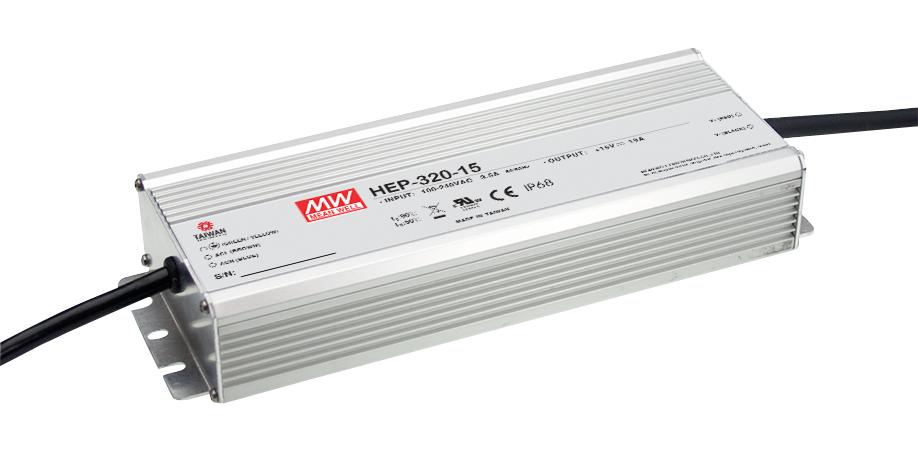

MEAN WELL HEP32036A Industrial Power Supply
HEP-320 is a robust 320W industrial power supply designed for harsh environments, featuring high efficiency (up to 95%) and a fanless design for reliable operation from -55°C to +70°C. Encased in durable aluminum and potted with heat-conducted silicone, it meets IP65 standards, with optional IP68 rating. Suitable for outdoor telecom, signage, petroleum, and mining applications, it supports surge immunity up to 6KV, withstands 10G vibration, and operates at altitudes up to 5000 meters. Protections include short circuit, overload, overvoltage, and overtemperature, backed by a 6-year warranty.
MEAN WELL HEP32036A Industrial Power Supply Specifications:
- Power: 320W
- Input Voltage: 90~305VAC / 127~431VDC
- Output Voltages: 12V, 15V, 24V, 36V, 48V, 54V (model dependent)
- Rated Current: 22A at 12V, 19A at 15V, 13.34A at 24V, 8.9A at 36V, 6.7A at 48V, 5.95A at 54V
- Ripple & Noise: 150-350mVp-p depending on model
- Efficiency: Up to 95%
- Operating Temperature: -55°C to +70°C
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Vibration Resistance: 10G
- Surge Immunity: 6KV level
- Housing: Aluminum case with IP65/IP68 options
- Dimensions: 252mm x 90mm x 43.8mm
- Certifications: UL, CE, CB, cULus, EMC, TUV
- Mounting: Suitable for DIN rail or panel mounting
- Operating Altitude: Up to 5000 meters
Buy the Buy Mean Well HEP-320 Part Number HEP32036A Online
Purchase the Mean Well HEP-320 industrial power supply online today. Known for high efficiency up to 95%, robust IP65/IP68 rated casing, and wide temperature operation from -55°C to +70°C, this unit is ideal for outdoor telecommunication, signage, and heavy-duty industrial applications. Its fanless design ensures quiet operation with no external cooling needed, and protections against short circuit, overload, overvoltage, and temperature make it reliable and safe. Backed by a 6-year warranty, it guarantees durability and performance in demanding environments.
Get Mean Well HEP-320 today—built for precision, high efficiency, and long-lasting durability in challenging environments.
Frequently Asked Questions
Where can I buy MEAN WELL HEP32036A?
You can click on the BUY or RFQ button to purchase HEP32036A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HEP32036A?
You can download the HEP32036A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HEP32036A?
MEAN WELL
