MEAN WELL IDLV2512 LED Driver
The IDLV-25 series is a 25W AC/DC LED driver with PWM style constant voltage output, suitable for indoor LED strip and decorative lighting. Operating from 90~295VAC with models spanning 12V to 60V, this driver achieves up to 84% efficiency and operates in temperatures from -20°C to +90°C without fans. It features options like 2-in-1 dimming and auxiliary DC outputs, ensuring flexible integration into various LED lighting systems while providing reliable performance, a 3-year warranty, and robust protections including short circuit and overload safeguards.
MEAN WELL IDLV2512 LED Driver Specifications:
- Input Voltage: 90~295VAC, 127~417VDC
- Output Voltage: 12V, 24V, 36V, 48V, 60V (model dependent)
- Rated Power: 21.6W to 25.2W
- Efficiency: Up to 84%
- Dimming Range: 0~100%
- PWM Frequency: 1KHz (20%)
- Working Temperature: -20°C to +90°C
- Protection: Short circuit, over current, over temperature
- Input Frequency: 47~63Hz
- Dimensions: 110*75*22mm
- Environmental Humidity: 20~90% RH non-condensing
- Withstand Voltage: 3.75KVAC (I/P-O/P)
- MTBF: 382.7Khrs
- Certifications: EN55015, EN61000-3-2, EN61000-4, etc.

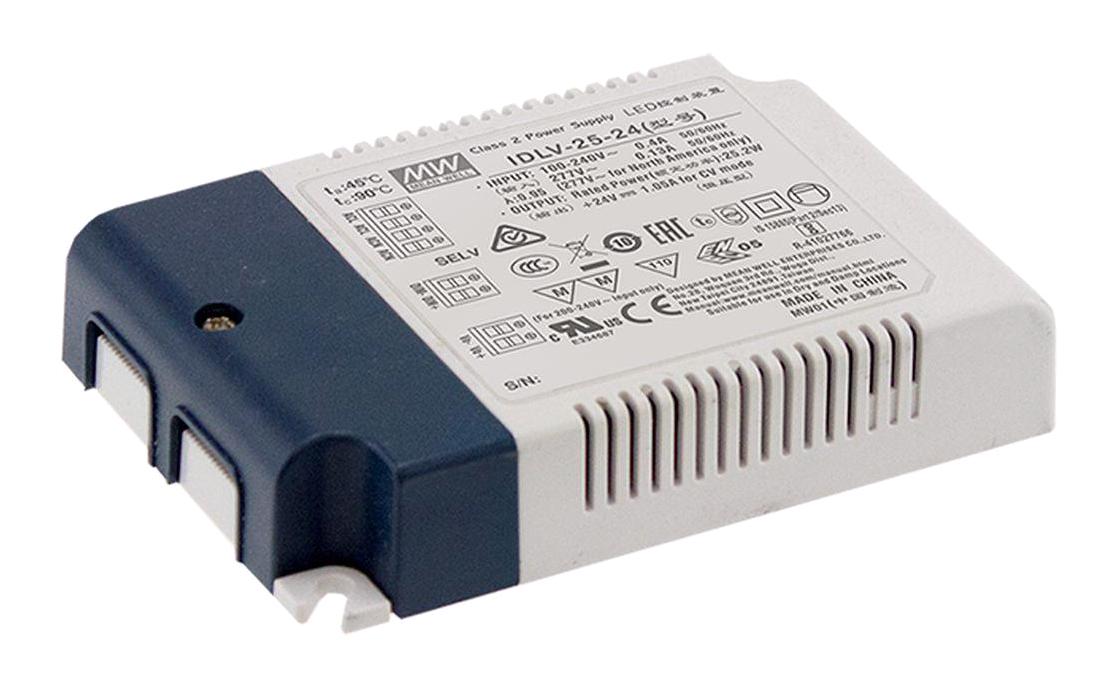

Buy the Meanwell Series DLV-25 LED Driver: IDLV2512
Enhance your LED lighting system with the high-quality 25W PWM output LED driver, perfect for indoor decorative and architectural lighting. Featuring versatile dimming options, high efficiency up to 84%, compact size, and reliable protections, this driver ensures stable performance across a wide temperature range. Its robust design with built-in active PFC and optional auxiliary DC output provides flexibility for various lighting applications. Purchase online today to enjoy fast delivery and superior lighting performance for your projects.
Order your Meanwell Series DLV-25 LED driver today and give your indoor lighting projects the reliable performance they deserve.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV2512?
You can click on the BUY or RFQ button to purchase IDLV2512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV2512?
You can download the IDLV2512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV2512?
MEAN WELL
