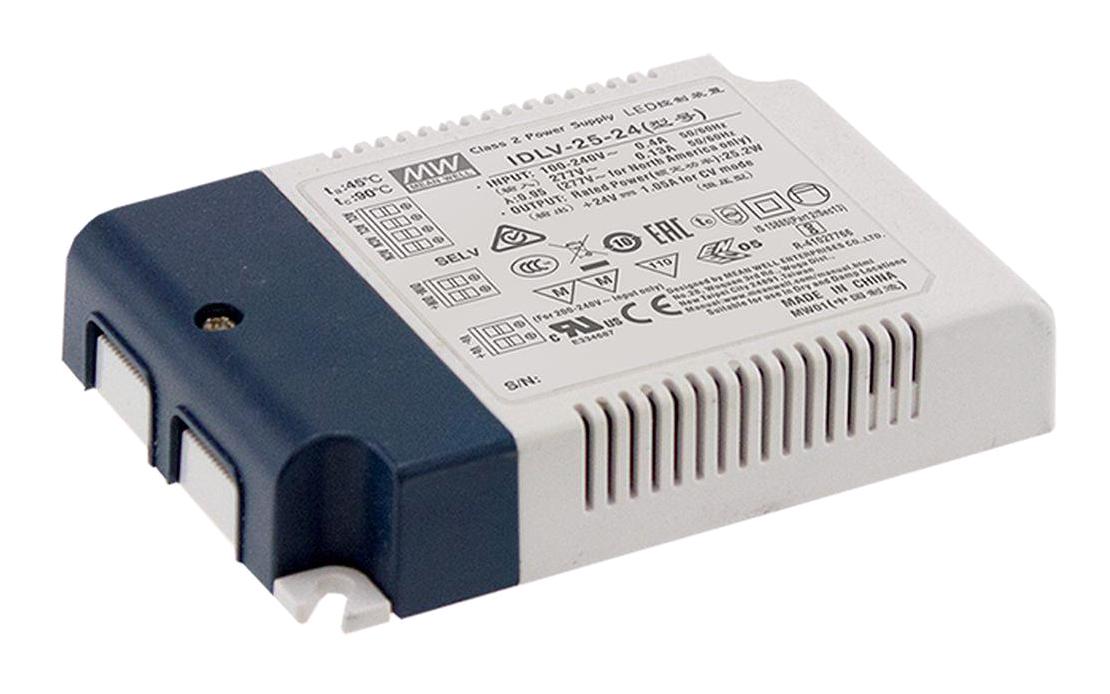

MEAN WELL IDLV2560 LED Driver
The IDLV-25 series is a 25W AC/DC LED driver with constant voltage PWM output, operating from 90~295VAC. It supports multiple rated voltages between 12V and 60V, offering high efficiency up to 84% and a fanless design suitable for temperatures from -20°C to +90°C. Features include 2-in-1 dimming options (0–10VDC and PWM), auxiliary DC output, and built-in active power factor correction. It is ideal for indoor LED strip, decorative lighting, and architecture lighting, with a robust plastic housing and a 3-year warranty.
MEAN WELL IDLV2560 LED Driver Specifications:
- Power: 21.6W to 25.2W depending on model
- Rated voltage: 12V, 24V, 36V, 48V, 60V
- Constant current region: 0.42A to 1.84A
- Input voltage: 90~295VAC / 127~417VDC
- Efficiency: up to 84%
- Frequency: 47~63Hz
- Dimensions: 110*75*22mm
- Operating temperature: -20°C to +90°C
- Leakage current: <0.75mA at 277VAC
- No load power consumption: <0.5W (Blank-Type), <1.2W (A-Type)
- Protection: Short circuit, overcurrent (105~120%), automatic recovery
- Enclosure: Plastic housing with Class II design
- Certifications: EN55015, EN61000-3-2, EN61000-3-3, etc.
- MTBF: 382.7K hours (MIL-HDBK-217F)
Buy the Mean Well IDLV-2560 U– Reliable PWM LED Driver for Industrial Applications
Purchase the 25W PWM LED driver online today to ensure you have a reliable, high-efficiency power solution for your LED lighting system. Designed with advanced dimming functions including 0–10VDC and PWM, it offers flexible control suitable for decorative, architectural, and indoor LED lighting applications. Its robust construction ensures durability under a wide temperature range, and the built-in active PFC ensures optimal power quality. Enjoy quick delivery and expert support when you buy this top-quality LED driver online, perfect for professional lighting setups.
Get Mean Well IDLV-2560 today—built for precision and long-lasting durability in indoor LED lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV2560?
You can click on the BUY or RFQ button to purchase IDLV2560 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV2560?
You can download the IDLV2560 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV2560?
MEAN WELL
