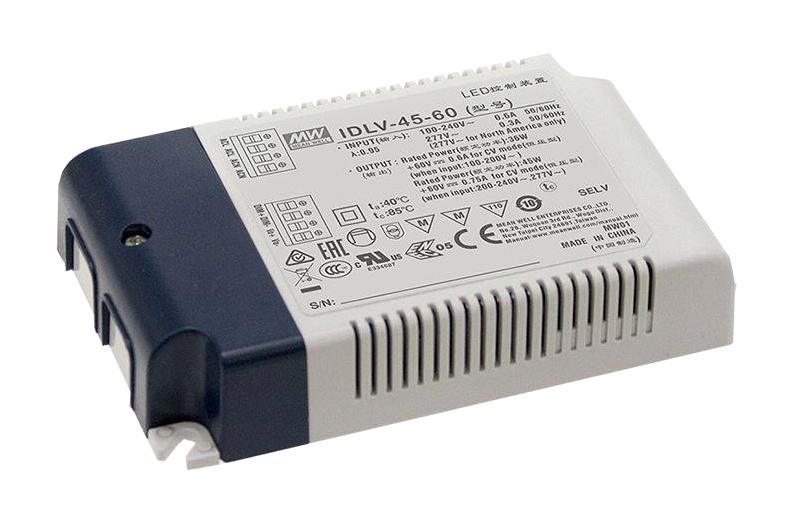

MEAN WELL IDLV4536 LED Driver
The IDLV-45 series is a 45W LED driver designed for indoor LED lighting, decorative, architectural, and strip lighting applications. It features constant voltage PWM output at 1KHz, operating from 90~295VAC with models ranging from 12V to 60V. The driver boasts up to 90% efficiency, fanless operation from -20°C to +85°C, and options for 2-in-1 dimming, including 0-10VDC and PWM signals. Its compact plastic housing and active PFC make it suitable for reliable, energy-efficient LED systems in various environments.
MEAN WELL IDLV4536 LED Driver Specifications:
- DC Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Power: 36W, 45W, 45.12W
- Rated Current: 3.0A, 1.88A, 1.254A, 0.944A, 0.754A
- Efficiency: up to 90%
- Input Voltage Range: 99~295VAC, 127~417VDC
- Frequency Range: 47~63Hz
- Power Factor: >0.9
- Inrush Current: 30A at 230VAC
- Leakage Current: <0.75mA
- No Load Power Consumption: <0.5W (Blank-Type)
- Operating Temperature: -20°C to +85°C
- Dimensions: 120×75×25mm
- Safety: I/P-O/P withstand voltage 3.75KVAC
- EMC Compliance: EN55015, EN61000-3-2, EN61000-3-3
- MTBF: 386,590 hours approx
- Weight: 0.22kg
Buy the Mean Well IDLV-45 Reliable LED Driver for Industrial Applications
Enhance your LED lighting systems with the IDLV-45 series LED driver, offering high efficiency up to 90%, compact design, and versatile dimming options. Perfect for indoor lighting, architectural, decorative, and LED strip lighting, it operates reliably from -20°C to +85°C in various environments. With advanced features like active PFC and solid protection mechanisms, this 45W driver ensures consistent performance, energy savings, and long-term durability, making it an ideal choice for professional lighting installations. Buy online now for quick, reliable delivery and technical support.
Buy Mean Well IDLV-45 now and experience unmatched reliability and performance in your LED lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV4536?
You can click on the BUY or RFQ button to purchase IDLV4536 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV4536?
You can download the IDLV4536 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV4536?
MEAN WELL
