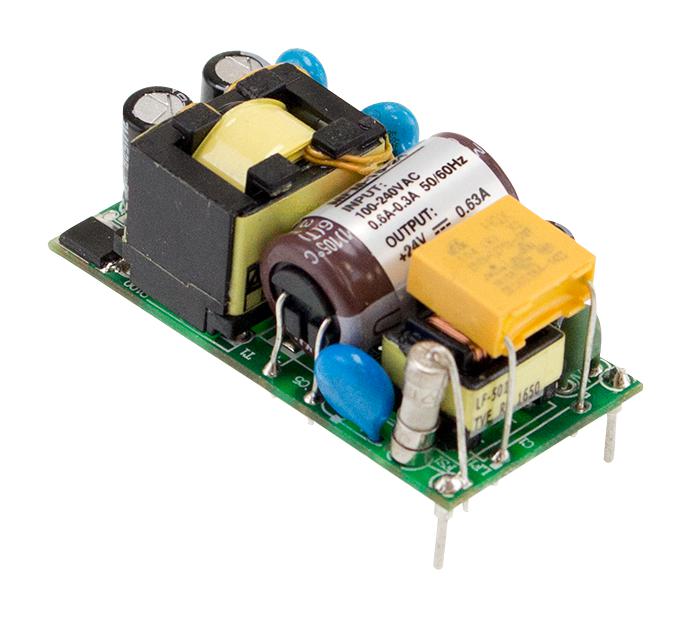

MEAN WELL MFM155 Medical Power Supply Module
The MFM-15 is a compact, high-density 15W medical power supply designed for hospital and clinical equipment. It features ultra-low leakage current, high efficiency up to 87%, and excellent EMI performance. Operating from 80 to 264VAC, it provides multiple output voltages including 3.3V, 5V, 12V, 15V, and 24V, with protections against short circuits, overcurrent, overvoltage, and overheating. Its small size (49x23.8x23mm) and compliance with IEC/EN60601-1 safety standards make it ideal for on-board use in medical devices, ensuring reliable, safe operation with minimal power consumption and enhanced patient safety.
MEAN WELL MFM155 Medical Power Supply Module Specifications:
- Dimensions: 49x23.8x23 mm (LxWxH)
- Input Voltage Range: 80-264VAC, 47-440Hz
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V
- Rated Power: 15W
- Efficiency: Up to 87%
- Leakage Current: <80μA at 264VAC
- Isolation: 4KVAC
- Operating Temperature: -35°C to +85°C
- Protections: Short circuit, Overload, Overvoltage, Over temperature
- Safety Standard: IEC/EN60601-1, ANSI/AAMI ES60601-1
- Compliance: Class II (no F G), 2xMOPP
- Vibration Resistance: 5G
- Storage Temp & Humidity: -40°C to +85°C, 10-95% RH
- MTBF: 4210 hours
- Certification: UL, CSA, EAC, TUV
Buy the Buy Medical Power Module Series MFM-15 Part Number MFM155 Online
Imperative for medical device manufacturing, the MFM-15 power supply offers compact size, high efficiency, low leakage, and multiple protections, ensuring consistent and safe operation in hospital and clinical environments. Its compliant design meets IEC/EN60601-1 safety standards, making it ideal for applications involving patient contact. Easy to integrate into medical equipment, it guarantees a stable power source with features like low no-load power consumption, high EMI performance, and robust protection against overload and overheating, thus supporting reliable healthcare solutions.
Buy Medical Power Module Series MFM-15 with 15W capacity now and experience reliable, safe power suitable for critical medical devices.
