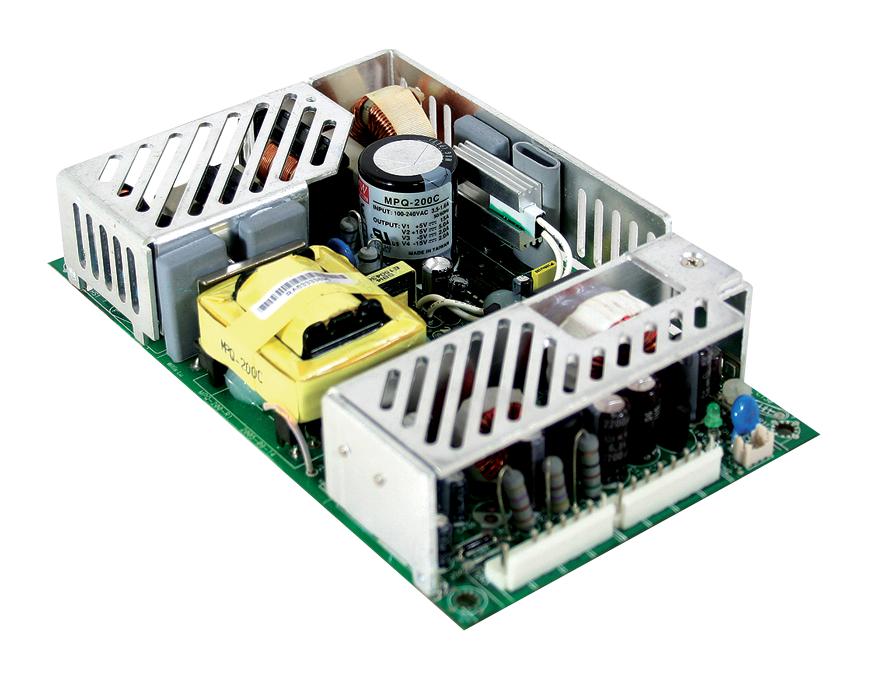

MEAN WELL MPQ200C Medical Power Supply
The 200W medical power supply offers universal AC input from 90 to 264 VAC, with multiple protections including short circuit, overload, over voltage, and temperature. It features built-in remote control, power good/fail signals, and compliance with ANSI/AAMI ES60601-1 medical standards. Its compact dimensions are approximately 177.8mm x 107.2mm x 36.5mm, with high efficiency and reliable operation across temperatures from -20°C to 70°C. Suitable for medical and industrial applications requiring stable, safe power delivery with low leakage current and EMI compliance.
MEAN WELL MPQ200C Medical Power Supply Specifications:
- Input Voltage: 90~264 VAC, 47~440Hz / 127~370VDC
- Output Power: 200W
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, 48V variants
- Dimensions: 177.8mm x 107.2mm x 36.5mm
- Efficiency: High efficiency with power factor >0.95/0.98 at full load
- Leakage Current: Less than 180A at 264VAC for earth, less than 100uA for patient leakage
- Cold start Inrush Currents: Less than 25A at 115VAC, less than 40A at 230VAC
- Protection: Short circuit, overload, over voltage (115%), over temperature at 95°C
- Operating Temp.: -20°C to 70°C, with derating
- Certifications: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, UL60950-1
- Isolation Voltage: 4000VAC input to output, 1500VAC input to F.G.
- EMI & EMS: EN55011, Class B, EN55022, EN61000-3-2, 3, 4, 6, 8, 11 compliance
- MTBF: 262,100 hours at full load and 25°C ambient
- Dimensions: 177.8mm x 107.2mm x 36.5mm
Buy the MW 2012-02-20 – Reliable Medical Power Supply for Industrial Applications
Discover the high-quality MW Series MPQ200C medical power supply, offering universal AC input, low leakage current, and comprehensive protections. Certified with ANSI/AAMI ES60601-1 standards, this 200W power supply ensures reliable and safe operation across medical and industrial environments. Its compact size and built-in remote control facilitate easy integration into your systems. With a long MTBF of over 262,000 hours, it provides consistent performance under demanding conditions, making it an ideal choice for healthcare, automation, and control applications. Purchase online today for dependable power solutions.
Order your MW Series MPQ200C medical power supply today and ensure stable, safe power delivery for your medical and industrial projects.
Frequently Asked Questions
Where can I buy MEAN WELL MPQ200C?
You can click on the BUY or RFQ button to purchase MPQ200C from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPQ200C?
You can download the MPQ200C datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPQ200C?
MEAN WELL
