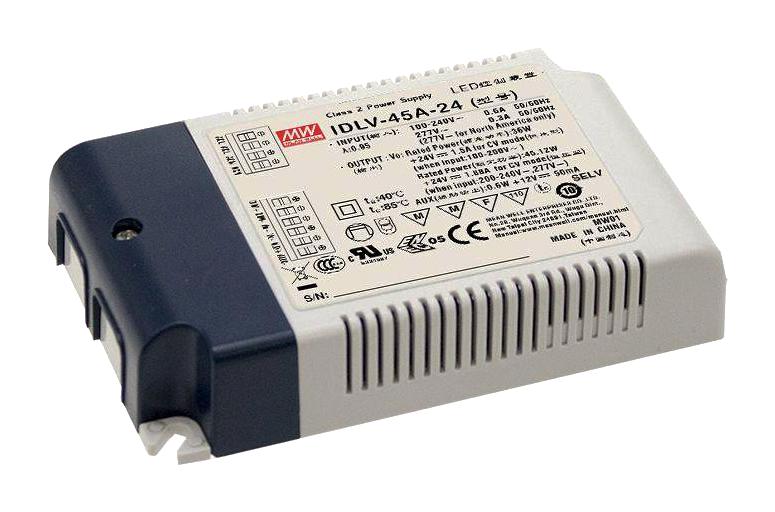

MEAN WELL IDLV45A24 LED Driver
The IDLV-45 series is a 45W LED driver designed for indoor LED lighting applications, including LED strip, decorative, and architecture lighting. It features a constant voltage PWM output at 1KHz, operates from 90~295VAC, and offers models with rated voltages from 12V to 60V. The high-efficiency design up to 90%, fanless operation, and high operating temperature range of -20°C to +85°C ensure reliable performance. It includes dimming options, auxiliary DC output, and a 3-year warranty, making it suitable for versatile LED lighting systems.
MEAN WELL IDLV45A24 LED Driver Specifications:
- Input Voltage Range: 99~295VAC or 127~417VDC
- Output Voltage Options: 12V, 24V, 36V, 48V, 60V
- Rated Power: 36W to 45.12W depending on model
- Rated Current: 3.0A (12V), 1.88A (24V), 1.254A (36V), 0.944A (48V), 0.754A (60V)
- Dimming Range: 0% to 100%
- PWM Frequency: 4KHz typical
- Efficiency: Up to 90%
- Operating Temperature: -20°C to +85°C
- Dimensions: 120*75*25mm
- Protection: Short circuit, over current, and overload protection
- Leakage Current: <0.75mA at 277VAC
- No load Power Consumption: <0.5W (Blank-Type), <1.2W (A-Type)
- Safety Compliance: Withstand voltage 3.75KVAC, EMC compliance, UL and CE certifications
- Vibration: 10~500Hz, 2G, 60 min along each axis
- MTBF: 386.59K hours
Buy the Buy Mean Well PWM Output LED Driver Part Number IDLV-45 Series Online
Enhance your LED lighting setup with the reliable and high-efficiency PWM LED driver from Mean Well. Designed for indoor applications, it offers wide input voltage compatibility, multiple output voltage options, and advanced dimming features. Its fanless, compact design ensures quiet operation and durability across a broad temperature range. Ideal for LED strips, decorative, and architectural lighting, this 45W driver promises high performance, energy efficiency, and long-term reliability. Purchase online today for fast delivery and professional results.
Order your Mean Well IDLV-45 series PWM LED driver today and ensure reliable, energy-efficient LED lighting for your indoor projects.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV45A24?
You can click on the BUY or RFQ button to purchase IDLV45A24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV45A24?
You can download the IDLV45A24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV45A24?
MEAN WELL
