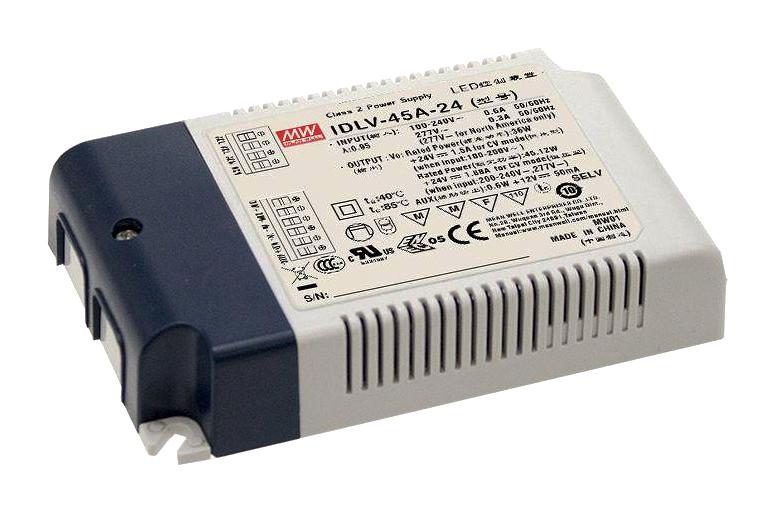

MEAN WELL IDLV45A36 LED Driver
The IDLV-45 series is a 45W high-efficiency AC/DC LED driver designed for indoor and decorative lighting. It features a constant voltage PWM output at 1kHz, operating from 90-295VAC with rated voltages from 12V to 60V. The fanless design allows operation from -20°C to +85°C, depending on model. It includes functions like 2-in-1 dimming (10V DC or PWM), auxiliary DC output, and over current protection. Its compact dimensions, built-in active PFC, and low no-load power consumption make it suitable for various LED lighting applications, including architectural, strip, and ambient lighting.
MEAN WELL IDLV45A36 LED Driver Specifications:
- Input Voltage Range: 99-295VAC / 127-417VDC
- Output Power: 36W to 45.12W depending on model
- Output Voltage: 12V to 60V
- Rated Current: 3.0A (12V) to 0.754A (60V)
- Efficiency: Up to 90%
- Dimming Range: 0-100%
- PWM Frequency: 1KHz
- Dimensions: 120×75×25mm
- Operating Temperature: -20°C to +85°C
- Protection: Over current, short circuit
- LED Dimming: 2-in-1 (0-10VDC and PWM)
- Built-in active PFC, fanless design, no load power <0.5W
- Compliance: EN55015, EN61000-3-2
- MTBF: 386,590 hours
- Isolation Voltage: 3.75KVAC I/P-O/P
- Environment: Humidity 20-90% RH (non-condensing)
Buy the Buy Mean Well IDLV-45 Series 45W PWM LED Driver Part Number IDLV45A36 Online
Purchase the reliable and efficient LED driver online today and ensure high-performance lighting for your indoor and decorative LED projects. Featuring PWM output and 45W power, this driver supports a wide voltage range from 12V to 60V, offering excellent dimming options including 0-10VDC and PWM, along with an auxiliary DC output. Its compact design, high efficiency up to 90%, and built-in protections make it an ideal choice for architectural, strip, and ambient lighting. Get optimal performance and durability with quick online ordering.
Order your Mean Well IDLV-45 series 45W PWM LED Driver today and enhance your LED lighting system with reliable, energy-efficient performance.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV45A36?
You can click on the BUY or RFQ button to purchase IDLV45A36 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV45A36?
You can download the IDLV45A36 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV45A36?
MEAN WELL
