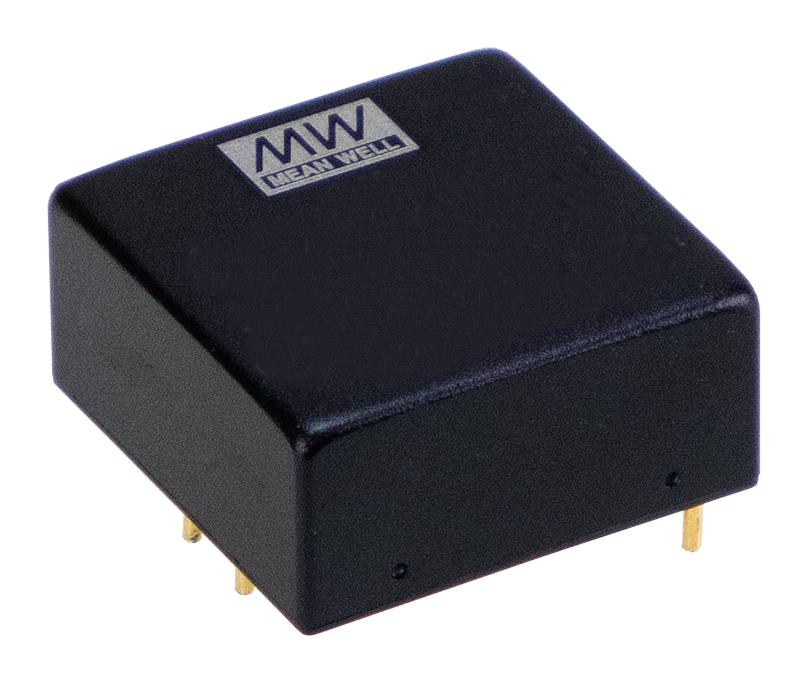

MEAN WELL DKMW06F12 DC-DC Converter
The DKMW06F12 is a 6W insulated, regulated DC-DC converter in a 1x1 inch DIP package, suitable for industrial and telecommunication systems. It features an ultrawide input range of 9~36V, high efficiency up to 86%, and 1.5KVDC I/O isolation. The device supports operation from -40°C to +85°C, with protections against short circuit, overload, over voltage, and input under voltage. Its compact, robust design makes it ideal for distributed power, industrial control, and communication applications, ensuring reliable power conversion in demanding environments.
MEAN WELL DKMW06F12 DC-DC Converter Specifications:
- Input Voltage Range: 9~36V (F) and 18~75V (G)
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V for single output; +5V, +12V, +15V, +24V for dual outputs
- Maximum Power Output: 6W
- Efficiency: Up to 86%
- Isolation Voltage: 1.5KVDC input-to-output
- Operating Temperature Range: -40°C to +85°C
- Switching Frequency: 300KHz
- Protection Features: Short circuit (continuous), Overload, Over voltage, Input under voltage
- Ripple & Noise: 60mVp-p (typ.), 85mVp-p (max.)
- Line Regulation: 0.2%
- Load Regulation: 1-1.5% depending on model
- Case Material: Black coated copper with non-conductive base
- Dimensions: 25.4mm x 25.4mm x 11.7mm (1 x 1 x 0.461 inch)
- Soldering Temperature: Max 260°C for 1-3 seconds
- Safety Standards: UL60950-1, EAC TP TC 004, with 1.5KVDC W/P-O/P withstand voltage
Buy the MEAN WELL DKMW06F12 – Reliable DC-DC Regulated Converter for Industrial Applications
Experience the trusted quality of the MEAN WELL DKMW06F12 series 6W regulated DC-DC converters, designed for industrial and telecommunication systems. With wide input voltage options from 9V to 75V, high efficiency up to 86%, and robust protection features including short circuit, overload, and over voltage, these compact modules ensure reliable power delivery. Their 1.5KVDC input-to-output isolation and operating temperature range of -40°C to +85°C make them suitable for demanding environments. Enhance your systems today by purchasing online and enjoy fast, secure delivery, and technical support.
Order your MEAN WELL DKMW06F12 series high-efficiency, wide input range DC-DC converter today and ensure dependable power supply in your industrial projects.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW06F12?
You can click on the BUY or RFQ button to purchase DKMW06F12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW06F12?
You can download the DKMW06F12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW06F12?
MEAN WELL
