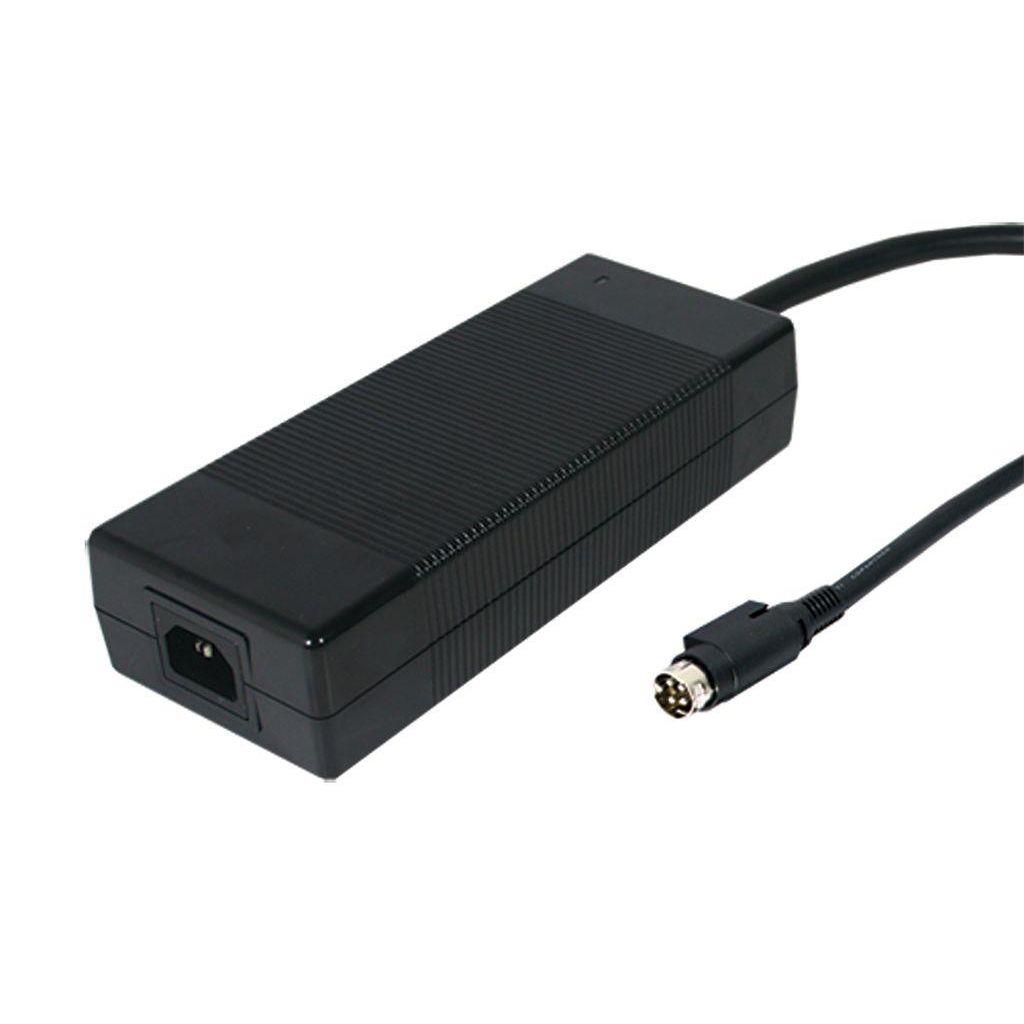

MEAN WELL GC220A48AD1 220W Battery Charger
The MEAN WELL GC220A48-AD1 is a robust 220W single output battery charger designed for a wide range of battery types including flooded, Gel, AGM, and Li-ion batteries. It incorporates a universal AC input, ensuring compatibility with various power sources, and a built-in Power Factor Correction (PFC) function for improved efficiency. The charger provides multiple protections such as short circuit, over load, over voltage, and over temperature, enhancing safety and reliability in diverse industrial applications. It is approved by UL, TUV, CB, FCC, CE, and UKCA, demonstrating compliance with international safety standards.
MEAN WELL GC220A48AD1 220W Battery Charger Specifications:
- charger_type: Battery Charger
- battery_compatibility: Lead-acid (flooded, Gel, AGM) and Li-ion batteries
- charging_stages: 2-stage charging characteristic
- ac_input: Universal AC input / Full range
- pfc_function: Built-in active PFC function (PF>0.90)
- no_load_power_consumption: <1W
- ac_inlet: 3-pole IEC320-C14
- safety_class: Class I power (with earth pin)
- protections: Short circuit / Overload / Over voltage / Over temperature
- cooling_method: Cooling by free air convection
- enclosure: Fully enclosed plastic case
- led_indicators: 2 color LED indicator for charging status
- approvals: UL / TUV / CB / FCC / CE / UKCA / EAC
- warranty: 2 years
- rated_power: 220W
- output_voltage_range: 27.2V / 54.4V / 13.6V
- frequency_range: 90 ~ 264VAC, 127 ~ 370VDC, 47 ~ 63Hz
- power_factor: PF>0.90 / 230VAC, PF>0.98 / 115VAC at full load
- efficiency: 92.5% / 93% / 89%
- ac_current: 4A / 115VAC, 2A / 230VAC
- input_leakage_current: 1.5mA / 240VAC
- withstand_voltage: I/P-O/P: 3KVAC
- isolation_resistance: I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- working_temperature: -30 ~ +60℃ (Refer to Derating Curve)
- working_humidity: 20% ~ 90% RH non-condensing
- storage_temperature_humidity: -40 ~ +85℃, 10 ~ 95% RH
- temp_coefficient: ±0.03% /℃ (0~50℃)
- vibration: 10 ~ 500Hz, 2G 10min./1cycle
- mtbf: 210*85*46mm (L*W*H)
- dimension: 210*85*46mm (L*W*H)
- weight: 1.1Kg; 12pcs/14.2Kg/0.73CUFT (R7B model), 1.2Kg; 12pcs/15.4Kg/1CUFT (AD1 model)
- connector_type: See page 2 (Other types available by customer request)
- plug_type: See page 2 (Other types available by customer request)
