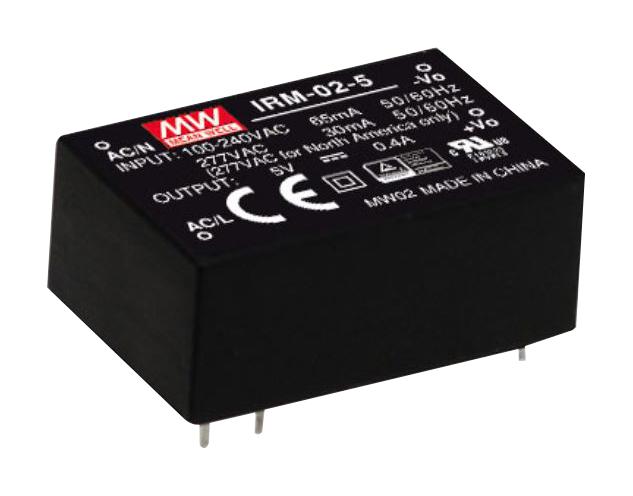

MEAN WELL IRM025 Miniature AC-DC Power Supply
The IRM-02 series is a compact 2W AC-DC power supply module designed for industrial and electronic applications. Measuring 33.7 x 22.2 x 15 mm, it features a universal input range of 85-305VAC, high efficiency up to 77%, and low no-load power consumption below 0.075W, meeting worldwide energy standards. Its phenolic and fully potting silicone case ensure good heat dissipation, dust, and moisture resistance. It complies with EN55022 Class B EMC standards, includes protections for overload and overvoltage, and is suitable for factory automation, electronic instrumentation, and handheld devices.
MEAN WELL IRM025 Miniature AC-DC Power Supply Specifications:
- Power Output: 2W
- Input Voltage Range: 85~305VAC
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Current: 600mA (3.3V), 400mA (5V), 222mA (9V), 167mA (12V), 133mA (15V), 83mA (24V)
- Efficiency: Up to 77%
- No Load Power Consumption: <0.075W
- Protection: Short circuit, Overload, Overvoltage
- Isolation Voltage: 3kV (O/P to O/P)
- Operating Temperature: -30°C to +85°C
- Vibration Resistance: Up to 5G
- EMC Compliance: EN55022 Class B
- Dimensions: 33.7 x 22.2 x 15 mm
- Housing: Phenolic case with fully potting silicone
- MTBF: 1960Khrs min.
Buy the Buy MEAN WELL IRM-02 Series Part Number IRM025 Online
Secure your MEAN WELL IRM-02 series IRM025 power supply online today. This compact 2W module features universal input voltage, high efficiency, and low no-load power consumption. Designed for industrial automation and electronic devices, it offers excellent reliability with protections against overload and overvoltage. Its robust construction ensures dust, moisture, and vibration resistance, meeting stringent EMC standards such as EN55022 Class B. Perfect for PCB integration, factory automation, and portable electronics, it guarantees dependable operation and easy installation for professional applications.
Order your MEAN WELL IRM-02 Series IRM025 today and ensure reliable power for your industrial and electronic projects with this compact, high-efficiency module.
Frequently Asked Questions
Where can I buy MEAN WELL IRM025?
You can click on the BUY or RFQ button to purchase IRM025 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM025?
You can download the IRM025 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM025?
MEAN WELL
