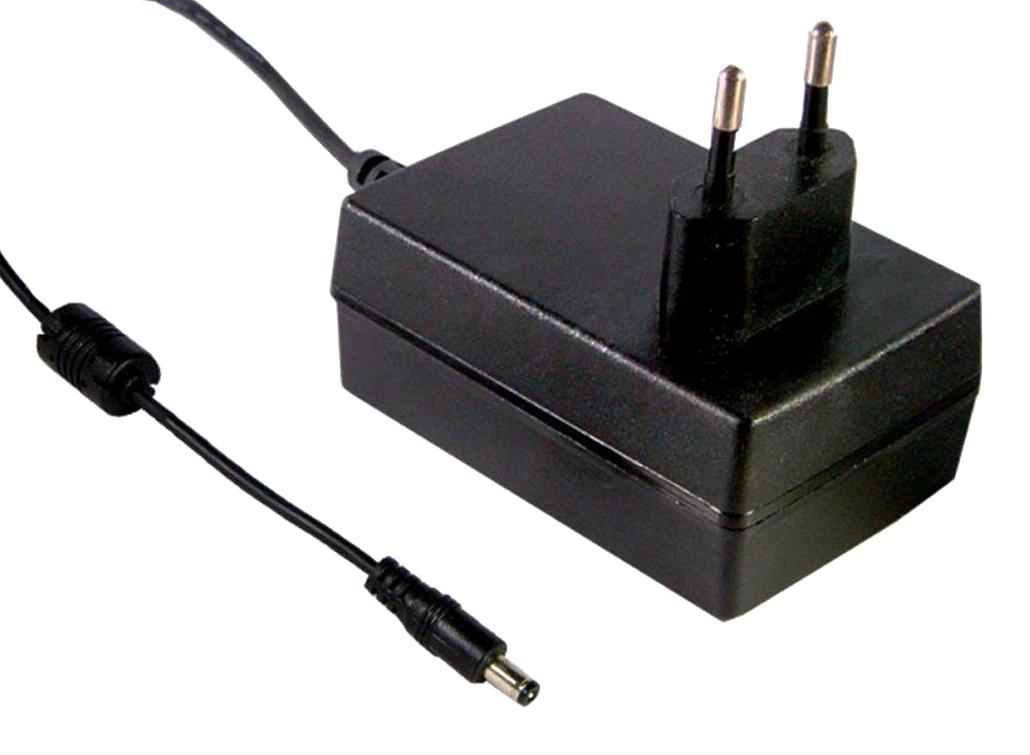

MEAN WELL GSM36E07P1J Medical Power Adapter
GSM36E07P1J is a highly reliable, medical-grade 36W power adapter designed for portable and wall-mounted medical devices such as blood glucose meters, blood pressure monitors, nebulizers, and inhalers. It features universal AC input from 80VAC to 264VAC, achieving efficiency up to 88% and ultra-low leakage current below 50μA. Conforming to international medical safety standards with 2 x MOPP insulation, it offers low no-load power consumption (<0.1W), high operating temperature up to +60°C, and comprehensive protections including short circuit, overload, and overvoltage. The fully enclosed plastic case enhances safety and durability, making it suitable for direct patient contact equipment.
MEAN WELL GSM36E07P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Power Output: 7V DC, 3A, 21W
- Efficiency: Up to 88%
- Leakage Current: <50μA
- No Load Power Consumption: <0.1W
- Ripple & Noise: Max 120mVp-p
- Voltage Tolerance: ±3.0%
- Line Regulation: ±1.0%
- Load Regulation: ±3.0%
- Operating Temperature: -25°C to +60°C
- Protection: Short circuit, Overload, Overvoltage
- Dimensions: 79mm x 54mm x 33mm
- Certifications: TUV EN60601-1, 60601-1-11, EAC
- Efficiency Level: VI (except for 5-9V outputs, Level V)
Buy the Buy Mean Well GSM36E07P1J Medical Power Supply Part Number GSM36E07P1J Online
Purchase the Mean Well GSM36E07P1J medical power adapter online today and benefit from its high efficiency, low leakage current, and comprehensive safety features. Designed for portable and wall-mounted medical devices, this 36W unit offers universal input from 80VAC to 264VAC, achieving efficiency levels up to 88% and operating in harsh environments with temperatures up to +60°C. Its compact, fully enclosed plastic case provides durability and safety, making it ideal for direct patient contact equipment requiring medical safety certification and low power consumption. Order now for reliable medical power solutions!
Buy Mean Well GSM36E07P1J now and experience unmatched reliability and performance for critical medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36E07P1J?
You can click on the BUY or RFQ button to purchase GSM36E07P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36E07P1J?
You can download the GSM36E07P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36E07P1J?
MEAN WELL
