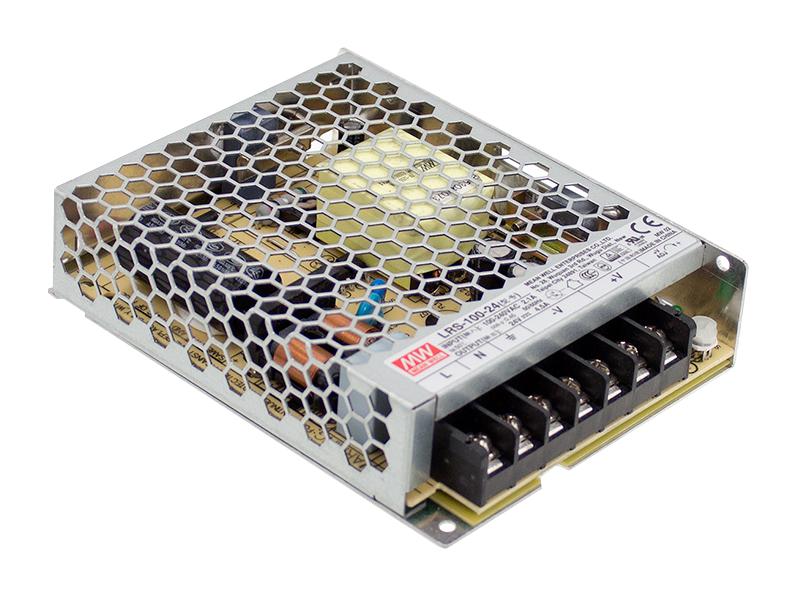

MEAN WELL LRS10024 power supply
The LRS-100 series is a highly efficient 100W single-output switching power supply designed for industrial and household applications. Its compact 30mm low-profile case supports an wide input range of 85–264VAC, operating temperatures from -30°C to 70°C, and features protections against short circuit, overload, and over voltage. The series exhibits up to 91% efficiency, low no-load power consumption, and excellent heat dissipation through a metallic mesh case. Ideal for automation machinery, control systems, and electronic devices, it complies with international safety standards and withstands harsh vibrations and altitude conditions.
MEAN WELL LRS10024 power supply Specifications:
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V
- Rated Power: 66W to 110.4W depending on model
- Rated Current: 20A for 3.3V, 18A for 5V, 8.5A for 12V, 7A for 15V, 4.5A for 24V, 2.8A for 36V, 2.3A for 48V
- Ripple & Noise: Max 100mVp-p to 200mVp-p depending on model
- Efficiency: Up to 91%
- Input Voltage: 85–264VAC or 120–373VDC
- Input Frequency: 47–63Hz
- Dimensions: 129*97*30 mm
- Operating Temperature: -30°C to 70°C
- Protection: Short circuit, overload, over voltage
- Vibration Resistance: 5G
- Altitude: Up to 5000 meters
- Safety Standards: UL, TUV, EN60335-1, IEC61558-1, and others
- Isolation Resistance: 100M Ohms / 500VDC
- MTBF: 3348.9K hours minimum
- Cooling Method: Air convection with metallic mesh case
Buy the Mean Well 100W Series Reliable Power Supply for Industrial Applications
Purchase the reliable 100W power supply online for your industrial or household applications. This high-efficiency, low-no-load power solution features full protections, a compact low-profile design, and excellent heat dissipation. With wide input voltage compatibility and compliance with international safety standards, it ensures safety and long-term durability. Ideal for automation, control systems, electronic appliances, and more, this power supply guarantees minimal energy consumption, high reliability, and ease of installation. Order now and enhance your system's performance seamlessly.
Get Mean Well 100W Series power supply today—built for precision, high efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL LRS10024?
You can click on the BUY or RFQ button to purchase LRS10024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS10024?
You can download the LRS10024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS10024?
MEAN WELL
