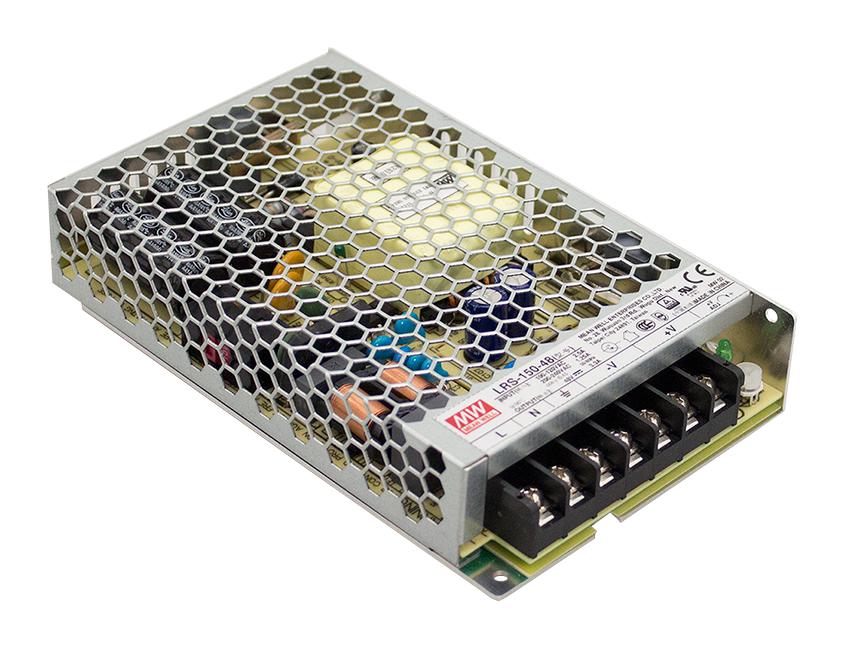

MEAN WELL LRS15015 Industrial Power Supply
The LRS-150 series is a compact 150W single-output switching power supply with a low profile of 30mm, suitable for industrial automation and control systems. It features high efficiency up to 90%, wide input voltage options (115VAC/230VAC), and operates from -30°C to 70°C. Its metallic mesh case ensures effective heat dissipation, supporting fanless convection cooling. The power supply offers comprehensive protections including overcurrent, overvoltage, overload, overtemperature, and short circuit. Compliant with international safety standards such as TUV EN60950-1, UL60950-1, and IEC standards, it also excels in vibration resistance and energy efficiency, making it ideal for harsh environments and various industrial applications.
MEAN WELL LRS15015 Industrial Power Supply Specifications:
- Model: LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48
- Output Power: 150W
- Output Voltage: 12V, 15V, 24V, 36V, 48V
- Rated Current: 12.54A (12V), 10A (15V), 6.5A (24V), 4.3A (36V), 3.3A (48V)
- Voltage Range: 10.2–13.8V (12V), 13.5–18V (15V), 21.6–28.8V (24V), 32.4–39.6V (36V), 43.2–52.8V (48V)
- Ripple & Noise: Max. 150mVp-p (12V/15V), 200mVp-p (24V/36V/48V)
- Efficiency: Up to 90%
- AC Input Voltage: 85–132VAC / 170–264VAC
- Frequency Range: 47–63Hz
- Dimensions: 159mm x 97mm x 30mm
- Operating Temperature: -30°C to 70°C
- Inrush Current: 60A (cold start, 230VAC)
- Protections: Overload, Overvoltage, Overtemperature, Short Circuit
- Isolation Voltage: W/P-O/P 3.75KVAC
- Vibration Resistance: 5G
- Safety Standards: UL, TUV, EN, CCC approved
- Cooling: Convection, no fan
Buy the Mean Well Series LRS150 Power Supply: 150W 12V/15V/24V/36V/48V
Order the Mean Well LRS-150 series power supply online today to enhance your industrial systems. This 150W model delivers high efficiency up to 90%, wide input voltage, and reliable protections for demanding environments. Its compact low-profile design of 30mm fits easily into various control panels, while convection cooling ensures silent operation. With comprehensive safety standards and a robust construction, this power supply guarantees long-term performance and energy savings. Perfect for automation, control systems, and industrial equipment requiring stable voltage and durability.
Buy Mean Well LRS-150 series power supply now and experience unmatched reliability and efficiency in industrial automation applications.
Frequently Asked Questions
Where can I buy MEAN WELL LRS15015?
You can click on the BUY or RFQ button to purchase LRS15015 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS15015?
You can download the LRS15015 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS15015?
MEAN WELL
