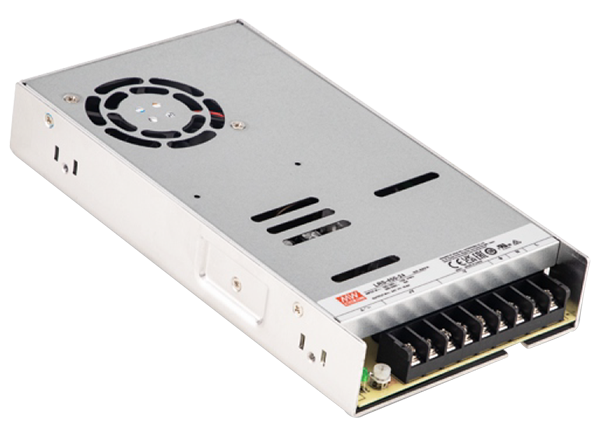

MEAN WELL LRS4505 Single Output Switching Power Supply
The MEAN WELL LRS-450 series is a 450W single-output enclosed power supply designed with a 35mm low-profile. It adopts an input of 115VAC or 230VAC (selectable by switch) and provides an output voltage line of 5V, 12V, 15V, 24V, 36V, and 48V. With high efficiency up to 92%, and built-in long-life fan, the LRS-450 can work under -20°C ~ +70°C with full load. It has complete protection functions and 5G anti-vibration capability, compliant with international safety regulations. The LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.
MEAN WELL LRS4505 Single Output Switching Power Supply Specifications:
- Model Encoding: LRS-450-5: Series name - Output voltage - Output power
- Output Voltage: 5V, 12V, 15V, 24V, 36V, 48V
- Rated Power: 450W
- Rated Current: 37.5A, 30A, 18.8A, 9.4A
- Current Range: 0 ~ 37.5A, 0 ~ 30A, 0 ~ 18.8A, 0 ~ 9.4A
- Ripple & Noise (max.): 200mVp-p (115VAC), 200mVp-p (230VAC), 240mVp-p (24V), 360mVp-p (48V)
- Voltage Tolerance: ±1.5% (5V), ±1.0% (12V, 15V, 24V), ±1.0% (36V), ±1.0% (48V)
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Setup, Rise Time: 16ms/230VAC at full load
- Hold Up Time (Typ.): 1500ms at full load
- Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC (switchable), 255 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Efficiency (Typ.): 90%
- Input Inrush Current (Typ.): 10A/115VAC, 6A/230VAC
- Leakage Current: <2mA / 240VAC
- Over Load: 105 ~ 150% rated output power
- Over Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms/500VDC @ 25℃/ 70% RH
- Working Temp.: -20 ~ +70℃
- Working Humidity: 20 ~ 90% RH non-condensing
- Storage Temp., Humidity: -40 ~ +85℃, 10 ~ 95% RH
- Temp. Coefficient: ±0.03%/℃ (0 ~ 50℃)
- Vibration: 10 ~ 500Hz, 5G 10min./1cycle
- MTBF: 1508.9K hrs (Telcordia SR-332), 252.2K hrs (MIL-HDBK-217F)
- Dimension: 225*124*35mm
- Packing: 0.85Kg/15pcs/14.11Kg/0.85CUFT
- Safety Standards: Compliance to EAC TP TC 020, BSMI CNS15936
- EMC Immunity: Compliance to EAC TP TC 020
- EMC Emission: BS IEC/UL 62368-1, EAC TP TC 004, AS/NZS62368.1 approved, BIS IS13252(Part1):2010/IEC60950-1:2005
