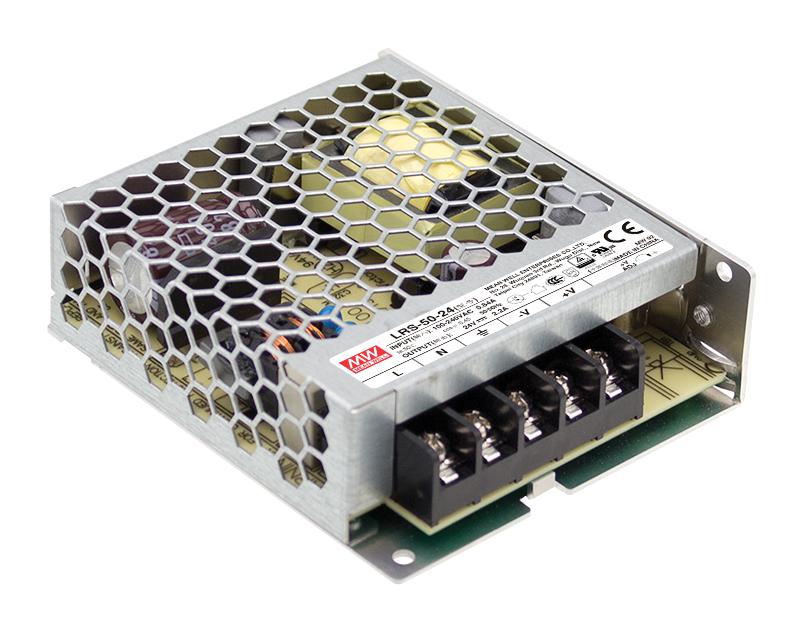

MEAN WELL LRS5048 Industrial Power Supply
LRS-50 series is a compact 50W single-output switching power supply designed with a low 30mm profile, suitable for industrial automation, control systems, and household appliances. It offers full-range 85-264VAC input, efficiency up to 90%, and operates from -30°C to 70°C without fans. Equipped with protections like short circuit, overload, and overvoltage, it features a metallic mesh case for heat dissipation, meets international safety standards, and is vibration and surge resistant for reliable long-term use. Ideal for electronic instruments and factory automation.
MEAN WELL LRS5048 Industrial Power Supply Specifications:
- Input Voltage: 85~264VAC, 120~373VDC
- Output Power: 50W
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V
- Rated Current: 10A for 3.3V, 4.2A for 12V, 2.2A for 24V, etc.
- Ripple & Noise: Max 200mVp-p depending on model
- Efficiency: Up to 90%
- Operating Temperature: -30°C to 70°C
- Protection: Short circuit, Overload, Overvoltage
- Isolation Voltage: 3.75KVAC (O/P to P/0)
- Vibration Resistance: 5G
- Certifications: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16
- MTBF: 645,000 hours
- Dimension: 99.8 x 30 mm (L x W x H)
- Cooling: Air convection, no fan required
- Compliance: IEC/EN 60335-1, IEC/EN61558-1/-2-16
- Surge Withstand: 300VAC for 5 seconds
Buy the Buy Industrial Power Supply Part Number LRS5048 Online
Purchase the Mean Well LRS5048 50W power supply online today for unmatched reliability and performance. Designed for industrial automation, control systems, and household appliances, this power supply features full-range AC input, high efficiency up to 90%, and excellent thermal performance without the need for fans. Its compact and low-profile design fits seamlessly into various equipment. With complete protections including short circuit, overload, and overvoltage, and compliant with international safety standards, it ensures durable and safe operation for demanding environments. Order now for fast delivery and peace of mind.
Buy Mean Well LRS5048 now and experience reliable, high-efficiency power for industrial automation and household applications.
Frequently Asked Questions
Where can I buy MEAN WELL LRS5048?
You can click on the BUY or RFQ button to purchase LRS5048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS5048?
You can download the LRS5048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS5048?
MEAN WELL
