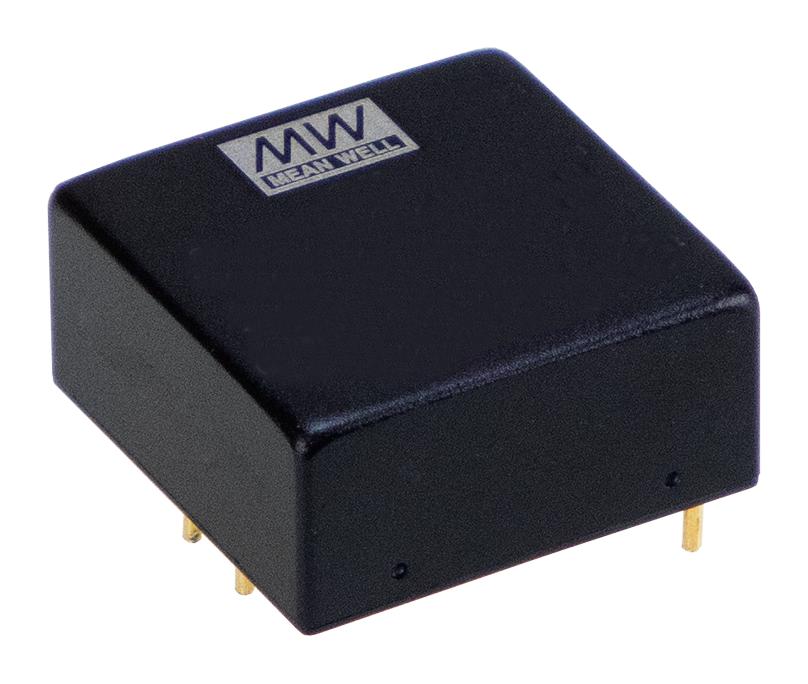

MEAN WELL DKMW06F24 DC-DC Power Converter
The DKMW06F24 is a 6W isolated and regulated DC-DC converter in a 1x1 inch DIP package, suitable for industrial, telecom, and distributed power systems. It features an input range of 9-36V, 24V output, high efficiency up to 86%, and a wide operating temperature from -40°C to +85°C. It includes protections for short circuit, overload, over voltage, and input under voltage, with 1.5KVDC I/O isolation, complying with EN55032 Class A. Compact, reliable, and suitable for diverse industrial automation and communication applications.
MEAN WELL DKMW06F24 DC-DC Power Converter Specifications:
- Input Voltage Range: 9~36V or 18~75V (depending on model)
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V (single or dual outputs)
- Rated Power: 6W
- Efficiency: Up to 86%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1.5KVDC between input and output
- Protections: Short circuit (continuous), overload, over voltage, input under voltage
- Ripple & Noise: 60mVp-p typical, 85mVp-p max.
- Line Regulation: 0.2%
- Switching Frequency: 300kHz
- Dimensions: 25.4mm x 25.4mm x 11.7mm (1 inch x 1 inch x 0.461 inch)
- Housing: Black coated copper with non-conductive base
- Operation Humidity: 5%~95% RH non-condensing
- Storage Temp: -55°C to +125°C
- Soldering Temp: Max 260°C for 3 seconds
- Certifications: UL60950-1, EAC TP TC 004, withstand voltage 1.5KVDC
- EMC Standards: EN55032 Class A without external components
- Vibration: 10~500Hz, 2G for 60 min along X, Y, Z axes
Buy the Mean Well Series DC-DC Converter: DKMW06F24
Secure your power management needs with the DKMW06F24 6W regulated DC-DC converter. It offers wide input voltage options, high efficiency up to 86%, and robust protections for safe operation. Its compact 1x1 inch form factor makes it ideal for industrial automation, telecom, and distributed power systems. Easy to install with international standard pinout, it ensures reliable performance across a broad temperature range from -40°C to +85°C. Order online today to upgrade your power conversion systems with confidence and efficiency.
Buy Mean Well DKMW06F24 now and experience unmatched reliability and high efficiency in industrial power solutions.
