MEAN WELL MDS20C15 Medical Grade Power Converter
The MDS20 series is a medical-grade, 20W isolated and regulated DC-DC converter featuring a compact 2x1-inch DIP package. It complies with IEC60601-1 safety standards and offers high efficiency up to 90%, making it suitable for medical devices, oxygen monitors, and ultrasound equipment. The module supports wide input voltages from 9V to 75V, various output voltages including 5V, 12V, 15V, and 24V, and operates across a broad temperature range of -40°C to +90°C. It features reinforced isolation up to 4000VAC, continuous short circuit protection, and low leakage current (<5μA), ensuring patient safety and reliability.
MEAN WELL MDS20C15 Medical Grade Power Converter Specifications:
- Input Voltage Range: 9~18V, 18~36V, or 36~75V DC
- Output Voltages: 5V, 12V, 15V, 24V DC
- Rated Power: 20W
- Efficiency: up to 90%
- Isolation Voltage: 4000VAC (I/P to O/P)
- Protection: Short circuit, overload (110~180%), input under voltage
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Switching Frequency: 250KHz to 300KHz
- Dimensions: 50.8mm x 25.4mm x 12mm
- Case Material: UL94V-0 plastic
- Vibration: 10~500Hz, 2G for 60 min/axis
- Safety Standards: IEC60601-1, EAC TP TC 004
- Withstand Voltage: 4kVAC (V P–O/P)
- Storage Temp & Humidity: -55°C to +125°C, 10~96% RH

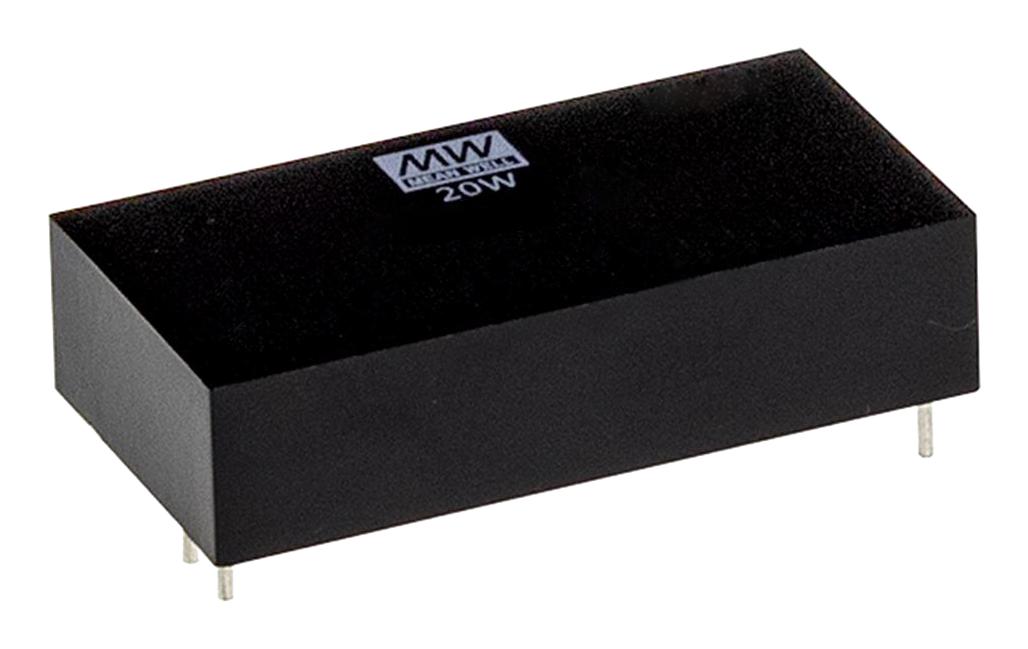

Buy the Buy Mean Well MDS20C15 Medical Grade DC-DC Converter Part Number MDS20C15 Online
Purchase the MDS20C15 medical-grade power converter online today to ensure your medical devices operate with high efficiency, robust safety features, and excellent isolation. With a compact design, broad input voltage support, low leakage current, and compliance with IEC60601-1 standards, this converter guarantees reliable performance across diverse healthcare applications. Invest in proven quality for medical carts, oxygen monitors, and ultrasound systems. Order now for fast delivery and seamless integration into your medical equipment to meet stringent safety and operational requirements.
Buy Mean Well MDS20C15 now and experience unmatched reliability and performance in medical power supplies.
Frequently Asked Questions
Where can I buy MEAN WELL MDS20C15?
You can click on the BUY or RFQ button to purchase MDS20C15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS20C15?
You can download the MDS20C15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS20C15?
MEAN WELL
