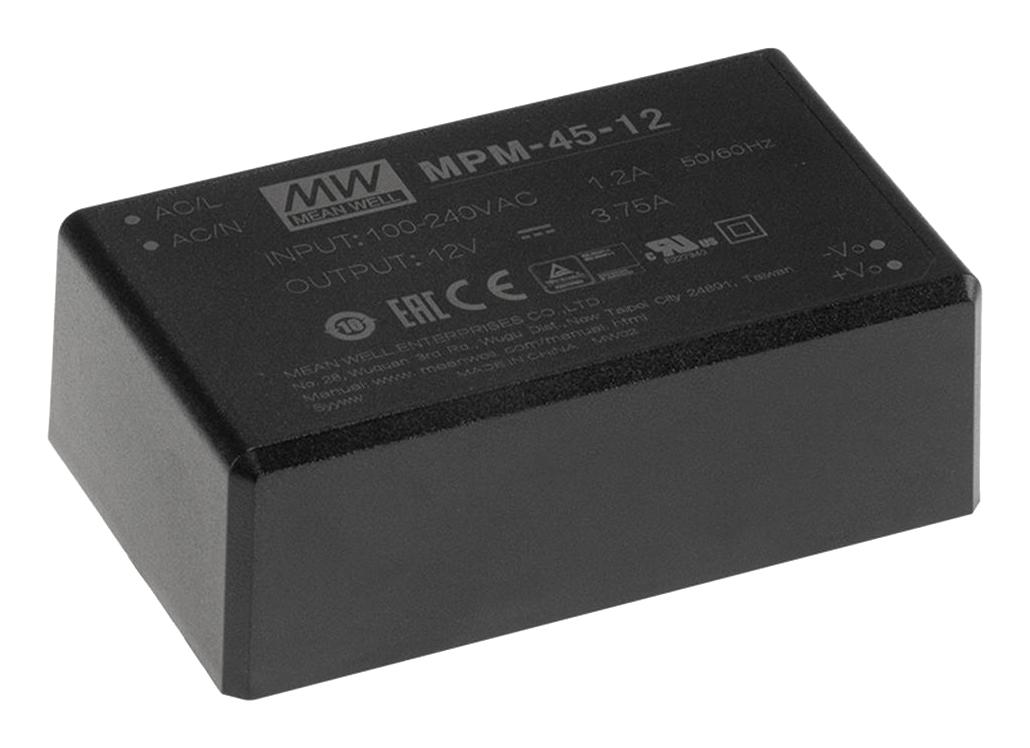

MEAN WELL MPM4512 Medical Power Supply
The MPM-45 series is a compact, medical-grade 45W power supply designed for medical devices and equipment. Featuring high efficiency up to 92.5%, a wide input voltage range of 80–264VAC, and ultra-low leakage current under 100μA, it ensures safety and reliability. It offers double insulation (Class II), 2x MOPP level isolation, and supports BF application with appropriate system considerations. Its robust construction includes protections against short circuit, overload, and overvoltage, making it ideal for portable medical devices, clinical workstations, and monitors. Certifications include IEC/EN60601-1 and ANSI/AAMI ES60601-1, meeting stringent safety standards.
MEAN WELL MPM4512 Medical Power Supply Specifications:
- Power Output: 45W with models from 12V to 48V
- Input Voltage: 80–264VAC, 113–370VDC
- Efficiency: up to 92.5%
- Dimensions: PCB mounting style 87x52x29.5mm; Screw terminal style 109x52x33.5mm
- Isolation: 4KVAC, Class II double insulation, 2x MOPP
- Leakage Current: <100μA at 264VAC
- Operating Temperature: -30°C to +80°C
- Vibration Resistance: 2-5G, model-dependent
- Protection: Overload, Overvoltage, Short circuit, Over temperature
- Safety Standards: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Certifications include EAC, RoHS compliance
- Working Humidity: 20–90% RH non-condensing
- MTBF: 563,440 hours (MIL-HDBK-217F), 1,530,140 hours (Telcordia).
Buy the Medical Power Supply Series MPM-45 45W: MPM4512
Purchase the high-efficiency, compact medical power supply Series MPM-45 today online and benefit from reliable operation, full safety certifications, and protections suitable for critical medical applications. This 45W power module offers low leakage current, wide input voltage range, and excellent electromagnetic compatibility, ensuring your portable or bedside medical devices function flawlessly. With safety standards met and robust protections, it’s the ideal choice for healthcare equipment. Order now online to get fast delivery, competitive prices, and trusted quality for your medical projects.
Order your Mean Well Series MPM-45 45W medical power module today and ensure your medical devices operate with safe, reliable power.
Frequently Asked Questions
Where can I buy MEAN WELL MPM4512?
You can click on the BUY or RFQ button to purchase MPM4512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM4512?
You can download the MPM4512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM4512?
MEAN WELL
