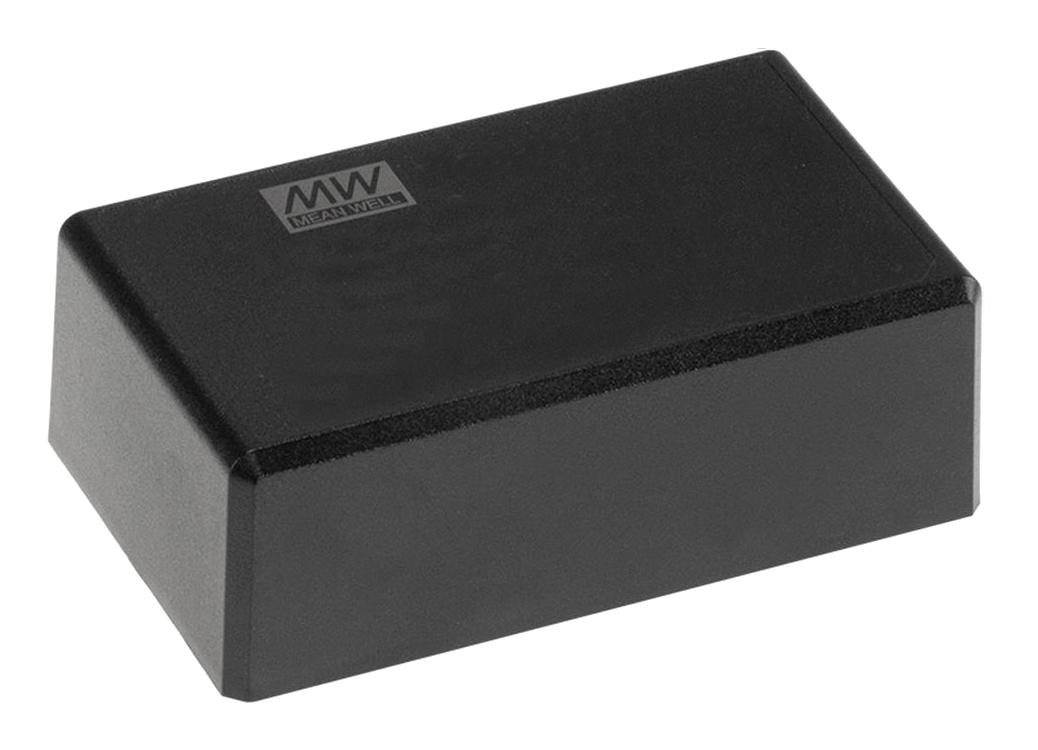

MEAN WELL MPM655 Medical Power Module
The MPN-65 power supply offers high reliability with 65W output, compact size, and medical-grade safety features conforming to IEC/EN60601-1 and ANSI/AAMI ES60601-1 standards. It's suitable for portable medical devices and BF applications, delivering up to 93% efficiency, ultra-low leakage current, and high EMC performance. With a wide input voltage range of 80–264VAC, low no-load power consumption under 0.1W, and protections against overload, overvoltage, and temperature, it ensures safety and dependable operation in critical healthcare systems.
MEAN WELL MPM655 Medical Power Module Specifications:
- Input Voltage: 80–264VAC, 113–370VDC
- Output Voltage: 12V, 15V, 24V, 48V
- Peak Power: 71W (10 sec.)
- Rated Power: 50W to 65W depending on model
- Efficiency: Up to 93%
- Leakage Current: <100HA
- Isolation: 4KVAC
- Operating Temp: -30°C to +80°C
- Humidity: 20% to 90% RH non-condensing
- Dimensions: 87x52x29.5mm (PCB mounting), 109x52x33.5mm (screw terminal)
- Vibration Resistance: 2-5G
- Certifications: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Altitude: Up to 4000 meters
Buy the MW 65W – Reliable Medical Power Module for Industrial Applications
Enhance your medical systems with the MW 65W power module, designed for safety, efficiency, and durability. This compact, high-reliability power supply adheres to international standards like IEC/EN60601-1 and ANSI/AAMI ES60601-1, offering ultra-low leakage current, high EMI compliance, and robust protections. Its wide input voltage range from 80 to 264VAC makes it versatile for global deployment. With a peak power capacity of 71W for 10 seconds, low no-load power consumption below 0.1W, and operating temperatures from -30°C to +80°C, it’s ideal for portable and BF-connected medical devices requiring dependable performance.
Order your MW series 65W medical power supply today and ensure the safety and reliability of your critical healthcare equipment with advanced features.
