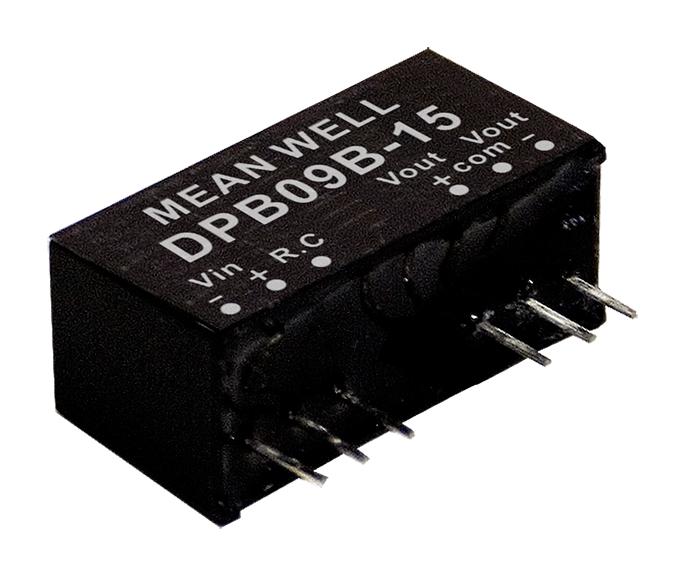

MEAN WELL DPB09B15 DC-DC Converter
The DPB09B15 series is a compact, 9W regulated DC-DC converter in SIP8 package, designed for industrial, telecom, and distributed power systems. It offers an efficiency of up to 89%, wide input range of 18-36V, and multiple output options including 15V at 0-300mA. The module features 1.5KVDC input-output isolation, continuous short circuit protection, and operation from -40°C to +90°C. With high reliability, it supports remote ON/OFF control and is ideal for industrial control, communication, and power distribution applications.
MEAN WELL DPB09B15 DC-DC Converter Specifications:
- Input Voltage Range: 18~36VDC
- Output Voltage: 15V
- Output Current: 0~300mA
- Efficiency: Up to 89%
- Isolation Voltage: 1.5KVDC
- Operating Temperature: -40°C to +90°C
- Protection: Continuous short circuit, overload
- Remote ON/OFF control support
- Switching Frequency: 400KHz
- Ripple & Noise: 100mVp-p
- Line Regulation: 0.5%
- Load Regulation: 0.5%
- Dimensions: 24*9.6*11.2mm
- Case Material: Non-Conductive UL 94V-0 rated
- Vibration: 10~500Hz, 2G
- Soldering Temp: 260°C for 1-3 sec
Buy the Mean Well Series DPB09B15 DC-DC Converter: 15V 300mA
Purchase the Mean Well Series DPB09B15 regulated DC-DC converter online today and experience dependable power conversion. This 9W module features high efficiency up to 89%, wide input voltage of 18-36V, and is ideal for industrial, telecom, and control applications. Its compact SIP8 package includes 1.5KVDC input-output isolation, continuous short circuit protection, and remote ON/OFF control, making it suitable for diverse demanding environments. Order now and ensure your systems operate smoothly and reliably with this cost-effective power module.
Order your Mean Well Series DPB09B15 regulated DC-DC converter today and enhance your industrial or telecom power setups with high efficiency and reliable isolation.
Frequently Asked Questions
Where can I buy MEAN WELL DPB09B15?
You can click on the BUY or RFQ button to purchase DPB09B15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DPB09B15?
You can download the DPB09B15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DPB09B15?
MEAN WELL
