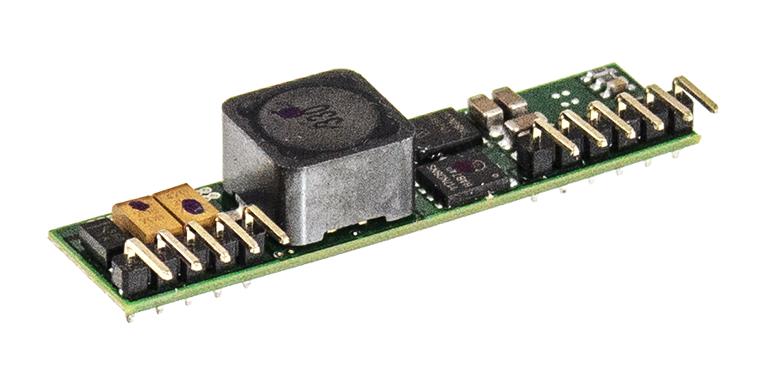

MEAN WELL NID3524 DC-DC Power Converter
The MW NID35 series is a compact, high-efficiency 35W DC-DC non-isolated regulated converter designed for various industrial applications. It features a wide input voltage range of 10.5V to 53V, with models supporting different output voltages from 12V to 48V. The converter offers up to 96% efficiency, remote ON/OFF control, and protections against short circuits, overloads, and overvoltage conditions. With a working temperature range from -30°C to +85°C, it ensures reliable performance in demanding environments. Its small size (2.0" x 0.512" x 0.433") makes it ideal for space-constrained applications, and it meets EN55032 Class A standards, suitable for EMC compliance.
MEAN WELL NID3524 DC-DC Power Converter Specifications:
- Input Voltage Range: 10.5V to 53VDC
- Output Power: 35W
- Output Voltages: 12V, 15V, 24V, 48V (models vary)
- Efficiency: Up to 96%
- Ripple & Noise: 150mVp-p max
- Line Regulation: 10.5% to 42.0% depending on model
- Load Regulation: 10.5%
- Voltage Tolerance: ±2.0V for specified outputs
- Switching Frequency: 200kHz (typical)
- Dimensions: 50.8mm x 13mm x 11mm (2.0" x 0.512" x 0.433")
- Weight: Approximately 99 g
- Operating Temperature: -30°C to +85°C
- Protection: Short circuit, overload, and overvoltage (hiccup mode)
- Standards: EN62368-1 (LVD), EN55032 Class A EMC compliance
- Cooling: Free air convection
Buy the MW Series NID35 35W dc-dc converter: NID3524
Purchase the MW NID3524 online today and benefit from a highly efficient, compact power converter designed for industrial use. This 35W DC-DC module features a wide input voltage range from 10.5V to 53V, supporting multiple output voltages including 12V, 15V, 24V, and 48V. Its high efficiency up to 96%, combined with protections against short circuits, overloads, and overvoltage, ensures reliable operation in challenging environments. The small size (2.0" x 0.512" x 0.433") allows easy integration into space-constrained setups, making it an ideal choice for automation and control systems seeking dependable, high-performance power conversion.
Get MW NID3524 today—compact, reliable power supply with high efficiency and protection features suitable for demanding industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL NID3524?
You can click on the BUY or RFQ button to purchase NID3524 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NID3524?
You can download the NID3524 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NID3524?
MEAN WELL
