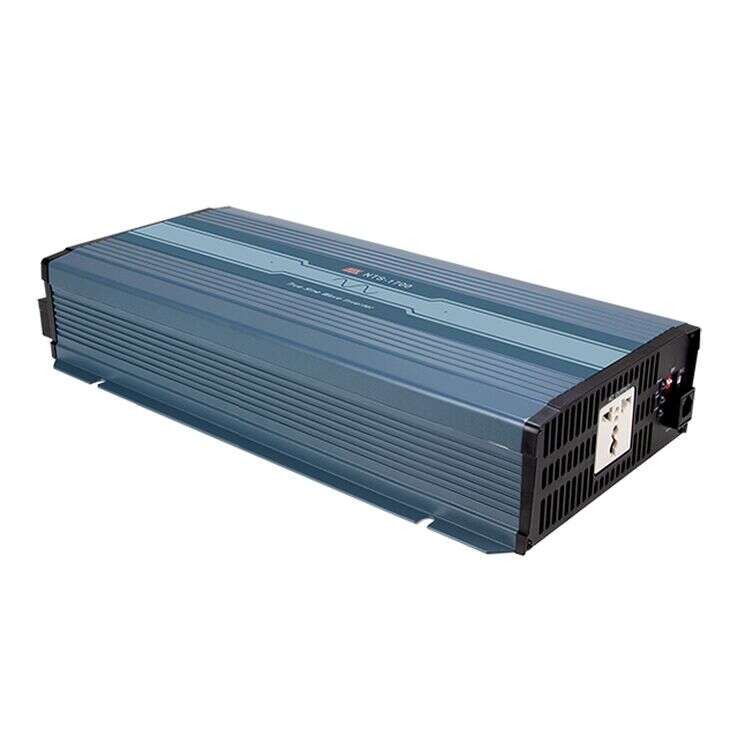

MEAN WELL NTS1700124US High Reliable Sine Wave Inverter
The MEAN WELL NTS-1700-124US is a 1700W high-reliability off-grid true sine wave DC-AC power inverter. Its key features include a digital design with MCU control, streamlined circuitry, high-quality fan, 3400W peak power, adjustable AC output voltage and frequency, wide operating temperature range, and complete protection features. Combined with batteries, the NTS-1700-124US is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power.
MEAN WELL NTS1700124US High Reliable Sine Wave Inverter Specifications:
- Waveform: True sine wave (THD<3%)
- AC Regulation: ±3.0% at rated input voltage
- DC Input: 24Vdc, 48Vdc, 12Vdc
- Voltage Range (Typ.): 20 ~ 33Vdc, 40 ~ 66Vdc, 10 ~ 16.5Vdc
- DC Current (Typ.): 75A, 37.5A, 170A
- Off Mode Current Draw: ≦1mA
- No Load Dissipation: 1.4W
- Efficiency (Typ.): 90%
- Battery Types: Lead Acid or li-ion
- Fuse (Internal): 40A*6, 40A*3, 25A*3
- Low Voltage Alarm: 11±0.3Vdc
- High Voltage Alarm: 50±1Vdc
- Low Voltage Shutdown: 10±0.3Vdc
- High Voltage Shutdown: 62±1Vdc
- Restart Voltage: 60±1Vdc
- Over Temperature Protection: Shut down o/p voltage, re-power on to recover
- Output Short Protection: Shut down o/p voltage, re-power on to recover
- Over Load: 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
